Switch 24 PoE is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features

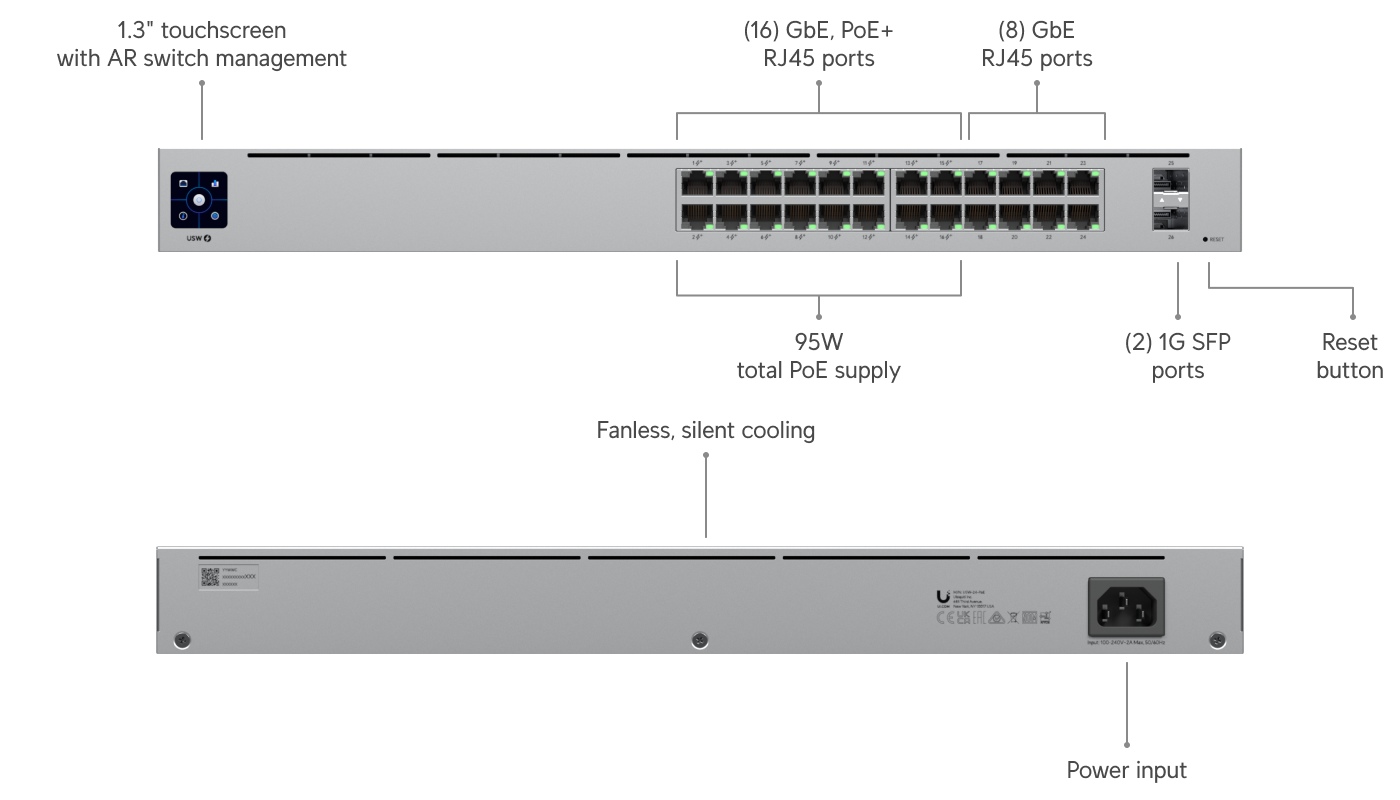

- Port layout: 24 (16 PoE+)
- Switching capacity: 52 Gbps
- PoE availability: 95W
- Form factor: Rack mount (1U)
- Power consumption: 25W (Excluding PoE output)
Applications

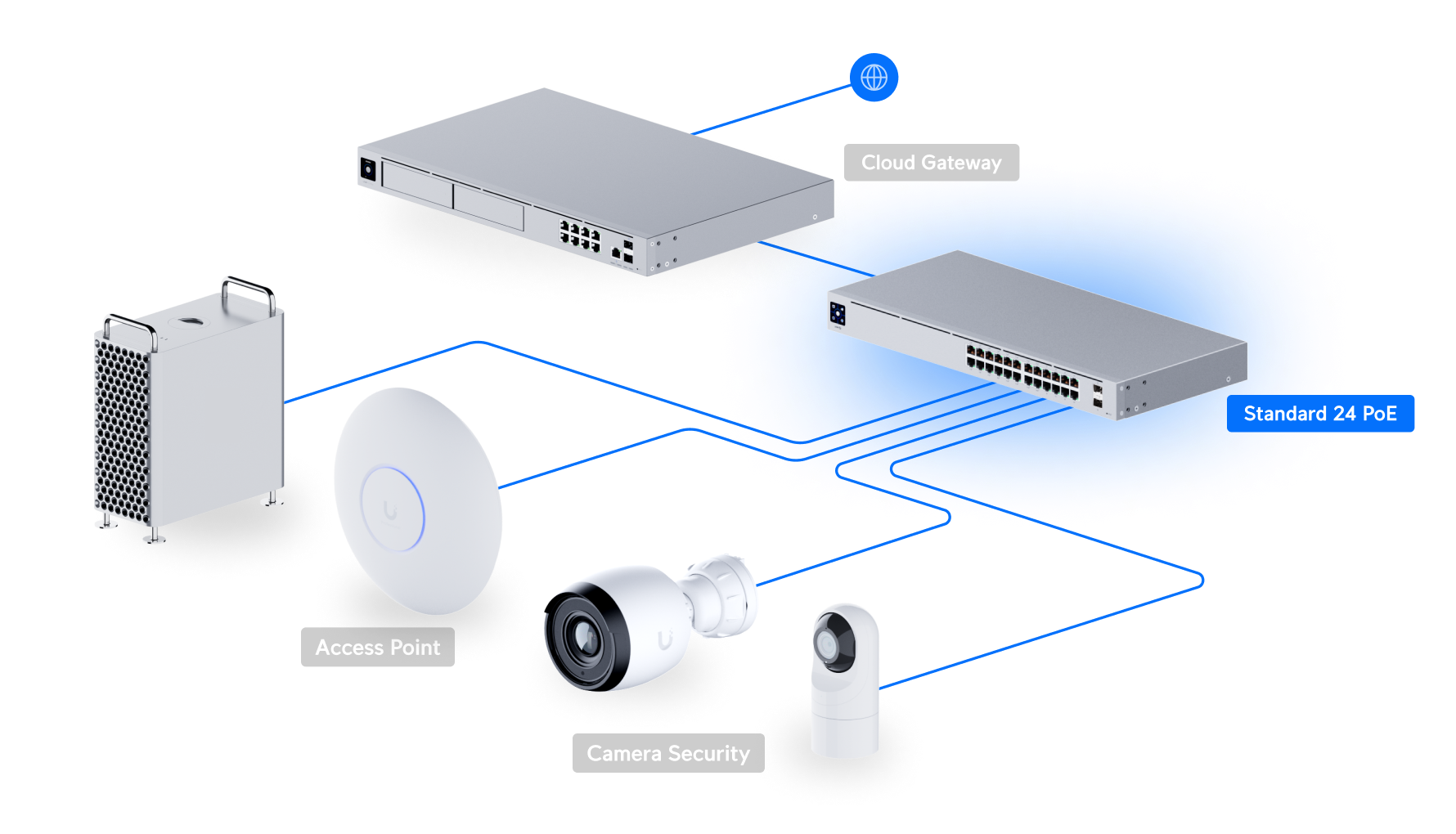

Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview

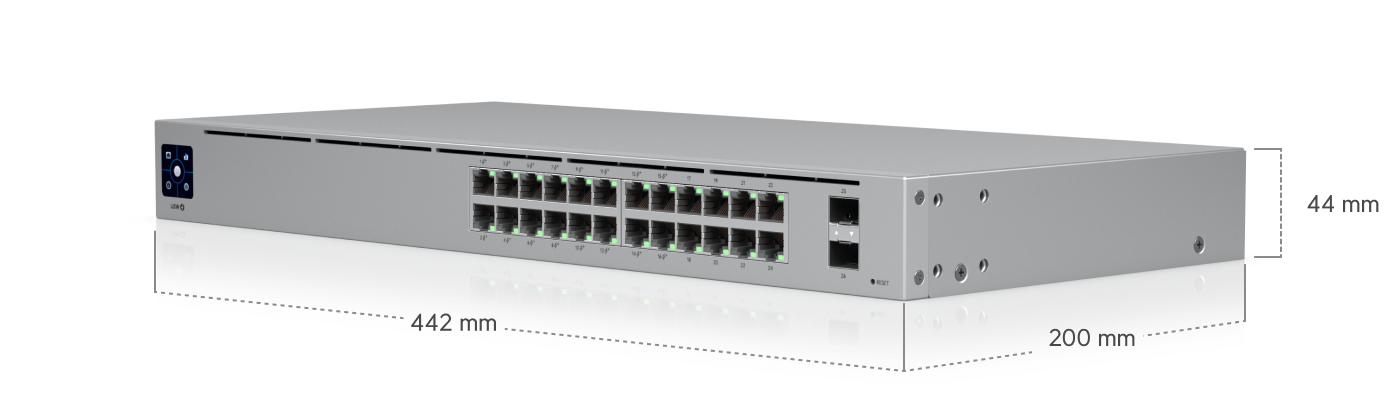

| Dimensions | 442 x 200 x 44 mm |
|---|---|
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption | 25W (Excluding PoE output) |
|---|---|
| Voltage Range | 100–240V AC |
| Weight | Without mounting brackets: 3 kg (6.6 lb) |
| Enclosure Material | SGCC steel |
Software
| App Requirement | UniFi Network Version 7.2.94 and later |
|---|
Additional specifications
| Port Layout | 1 GbE RJ45 |
|---|---|
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 95W |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 52 Gbps |
| Total Non-Blocking Throughput | 26 Gbps |
| Forwarding Rate | 39 Mpps |
| Supported VLANs | 1,000 |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
