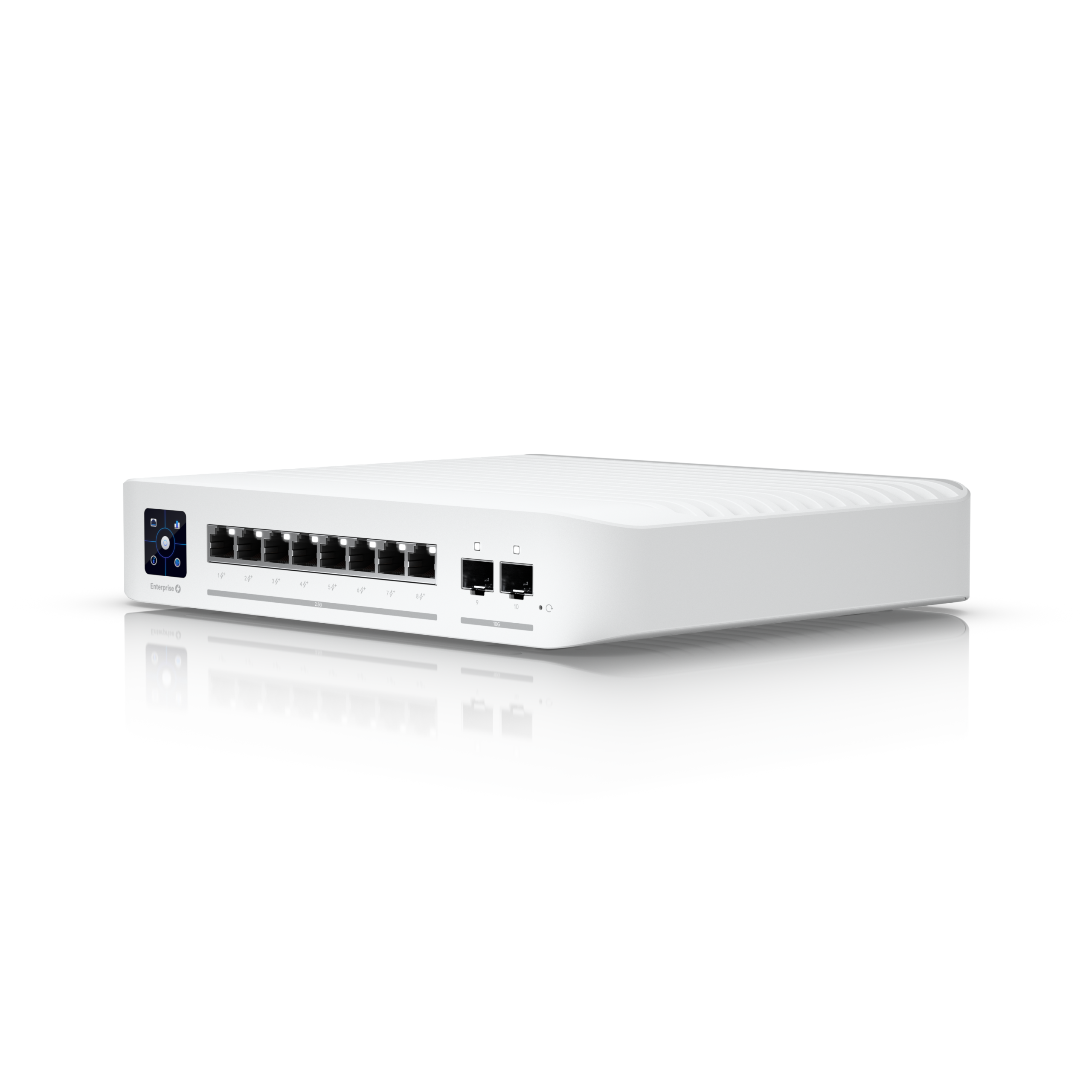

Switch Enterprise 8 PoE (Vintage) is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features
- Switching capacity: 80 Gbps
- PoE availability: 120W
- Form factor: Compact desktop
- Power consumption: 30W (Excluding PoE Output)
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview

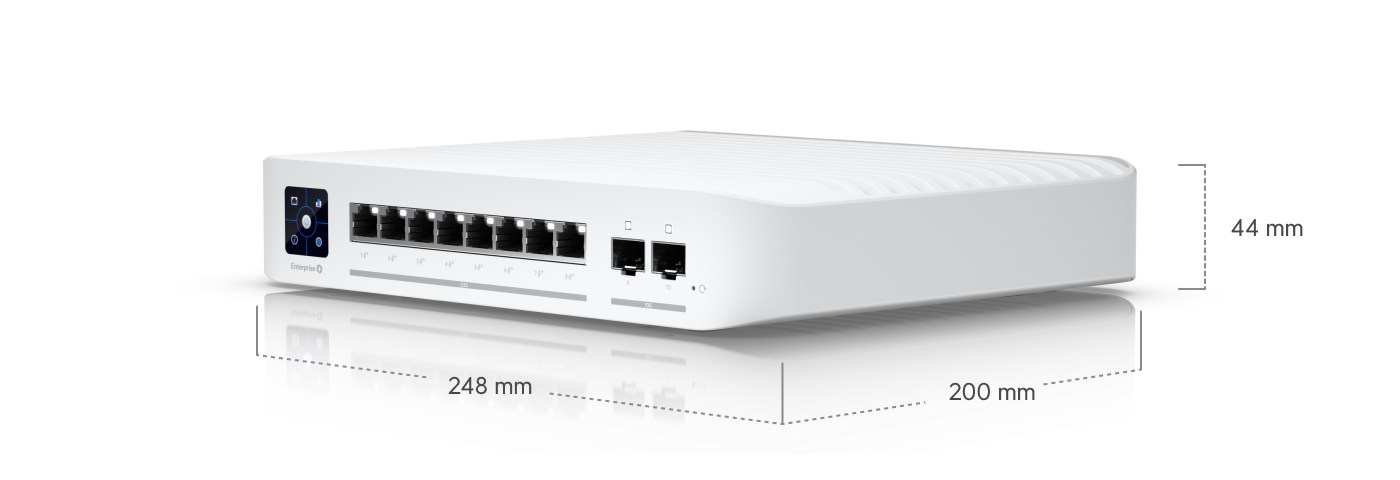

| Dimensions | 200 x 248 x 44 mm |
|---|---|
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption | 30W (Excluding PoE Output) |
|---|---|
| Voltage Range | 100–240V AC |
| Weight | 2.4 kg (5.3 lb) |
| Enclosure Material | Polycarbonate |
Software
| App Requirement | UniFi Network Version 6.3.51 and later |
|---|
Additional specifications

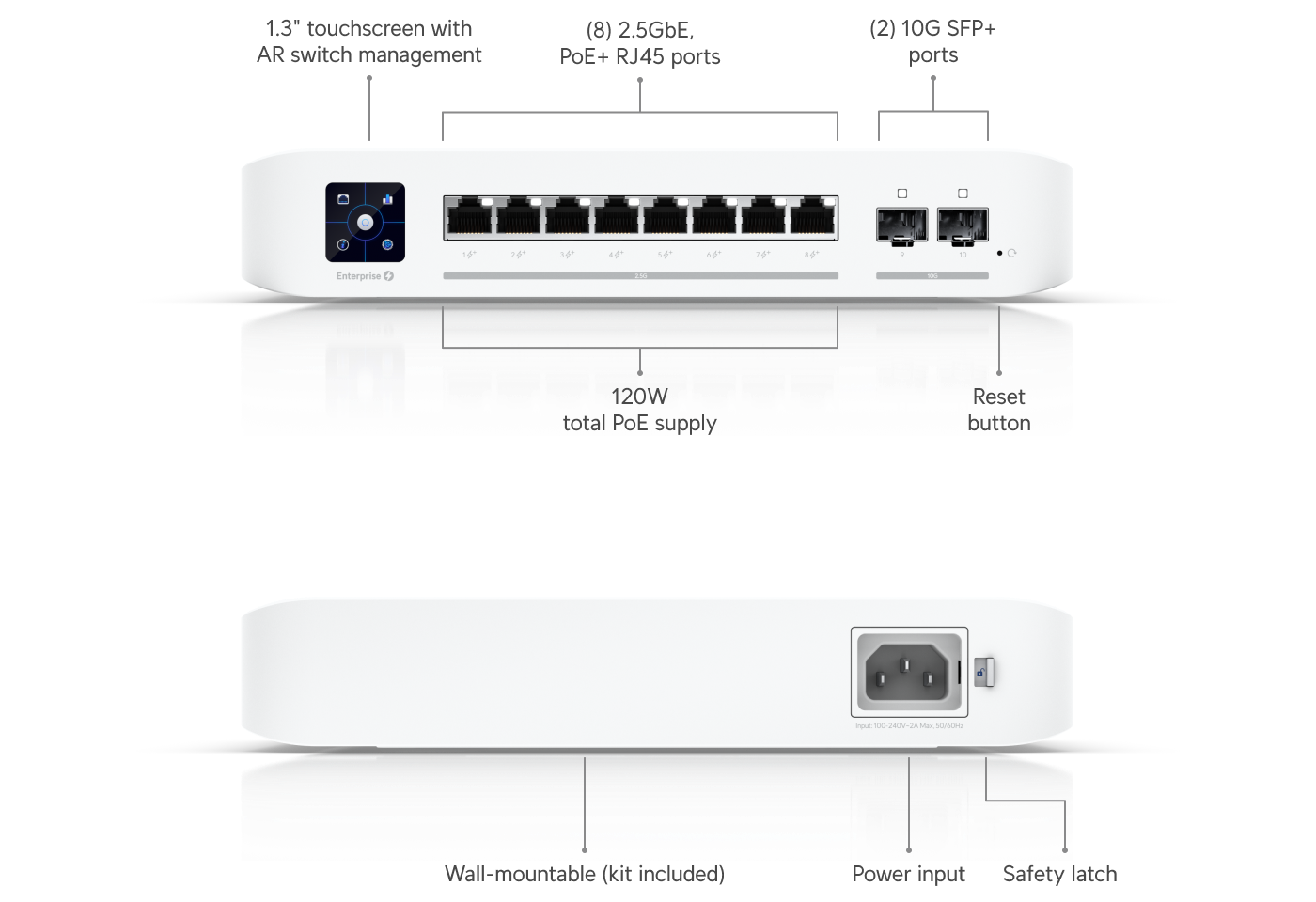

| Port Layout | 2.5 GbE RJ45 |
|---|---|
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 120W |
| Form Factor | Compact desktop |
| Switching Capacity | 80 Gbps |
| Total Non-Blocking Throughput | 40 Gbps |
| Forwarding Rate | 60 Mpps |
| Supported VLANs | 1,000 |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06645-23-08356 |
