Compact 8-port Ubiquiti UniFi switch with seven PoE+ outputs and PoE++ or optional adapter input.
Applications
Use for compatible network deployments after confirming power, frequency and regional requirements.
Official technical specifications
Technical specifications
Overview

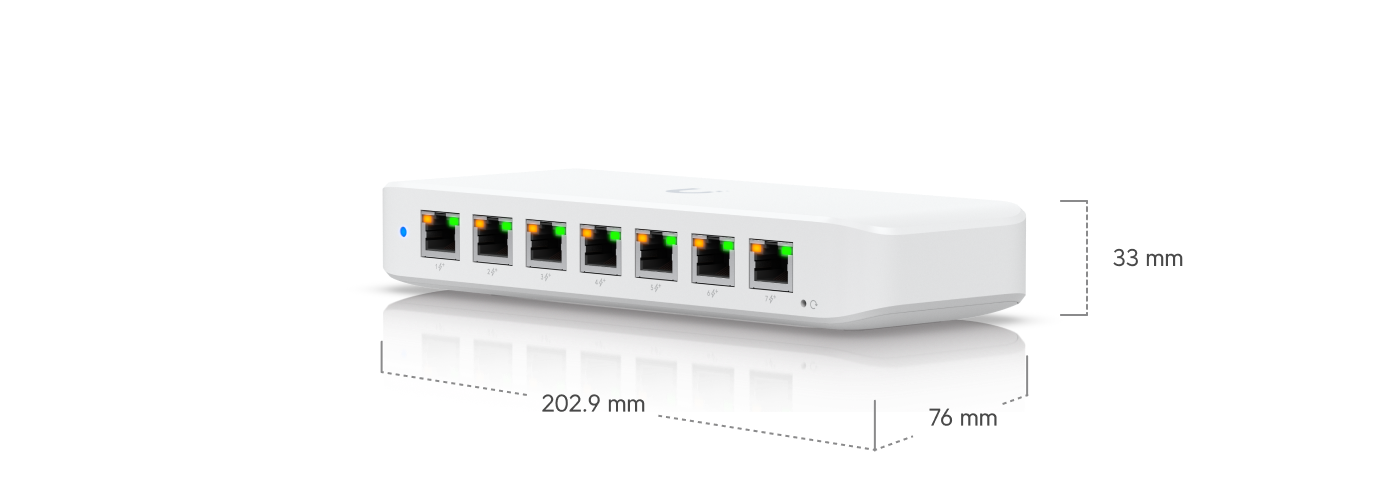

| Dimensions | 203 x 76 x 33 mm |
|---|---|

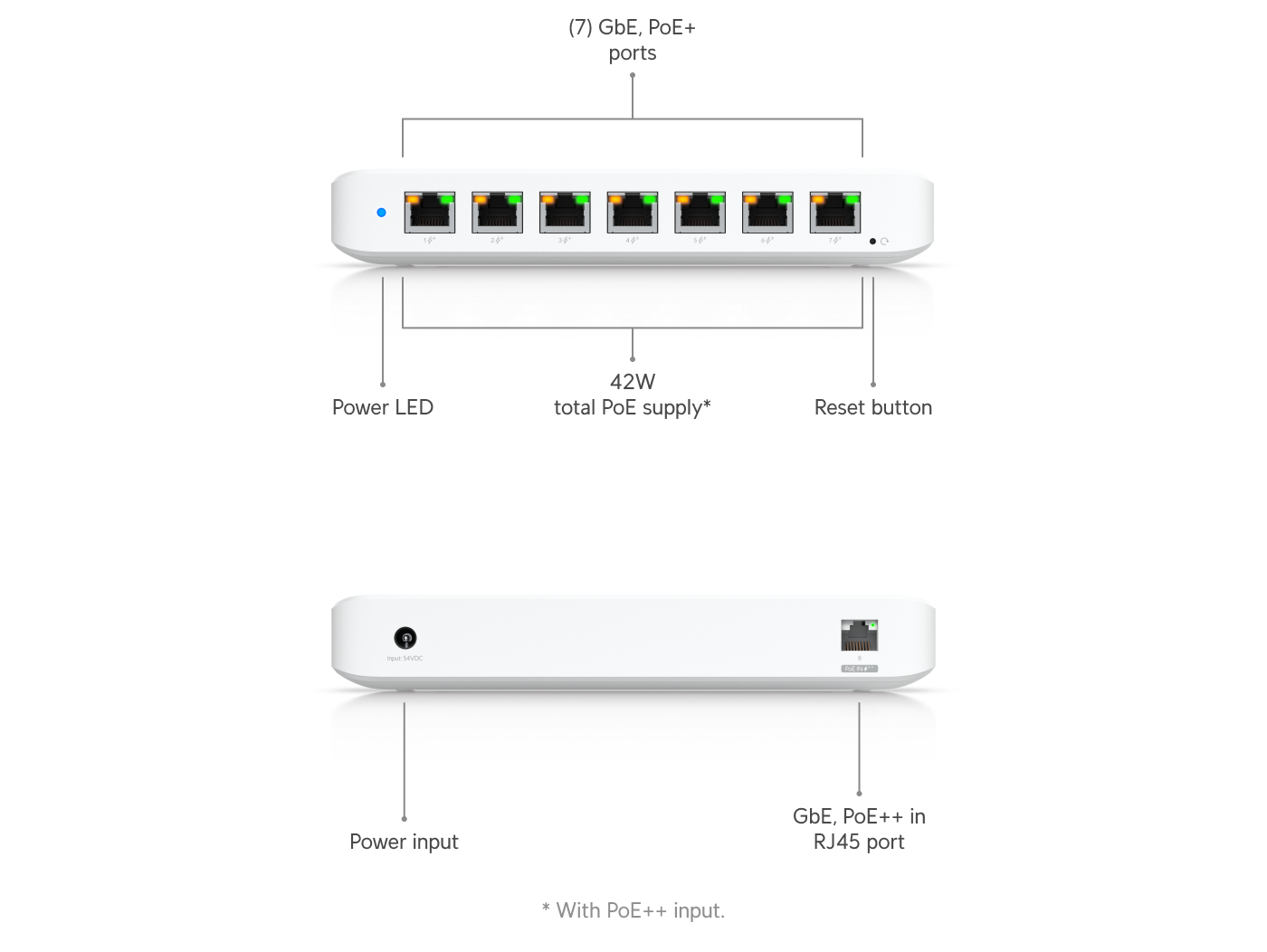

| Port layout | 8 x 1 GbE RJ45; 7 PoE+ outputs and 1 PoE++ input |
| Form factor | Desktop, wall or magnetic mounting |
Performance
| Switching capacity | 16 Gbps |
|---|---|
| Non-blocking throughput | 8 Gbps |
| Forwarding rate | 12 Mpps |
| Supported VLANs | 256 |
Hardware
| PoE availability | 42W with PoE++ input; 16W with PoE+ input; up to 202W with 210W adapter |
|---|---|
| Device consumption | 9W with PoE input; 8W with adapter input, excluding PoE output |
| Voltage range | 50–57V DC/PoE |
| Weight | 320 g; wall mount 45 g |
| Enclosure | Polycarbonate |
Software
| UniFi Network | Version 8.0.28 or later |
|---|
