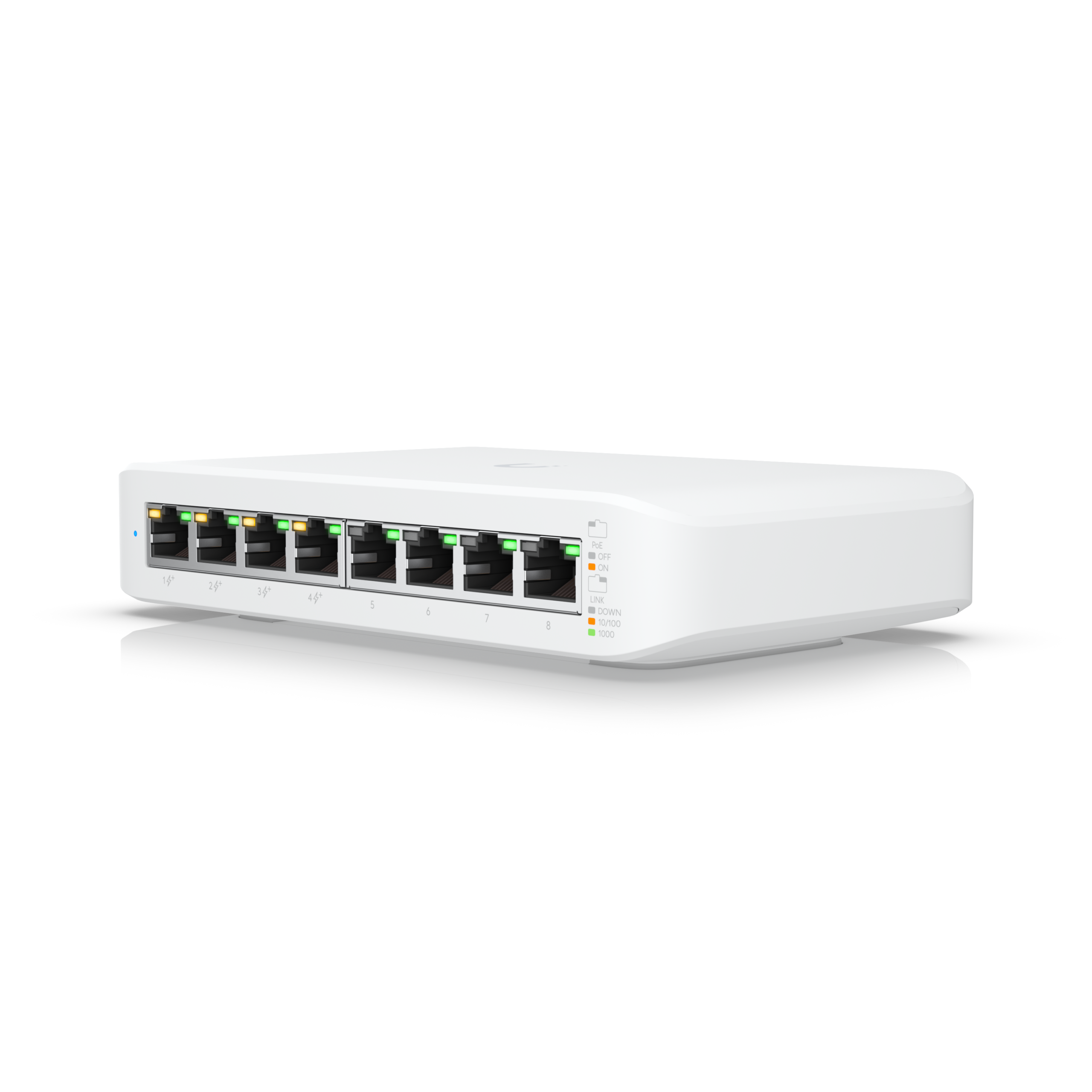

Switch Lite 8 PoE is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features

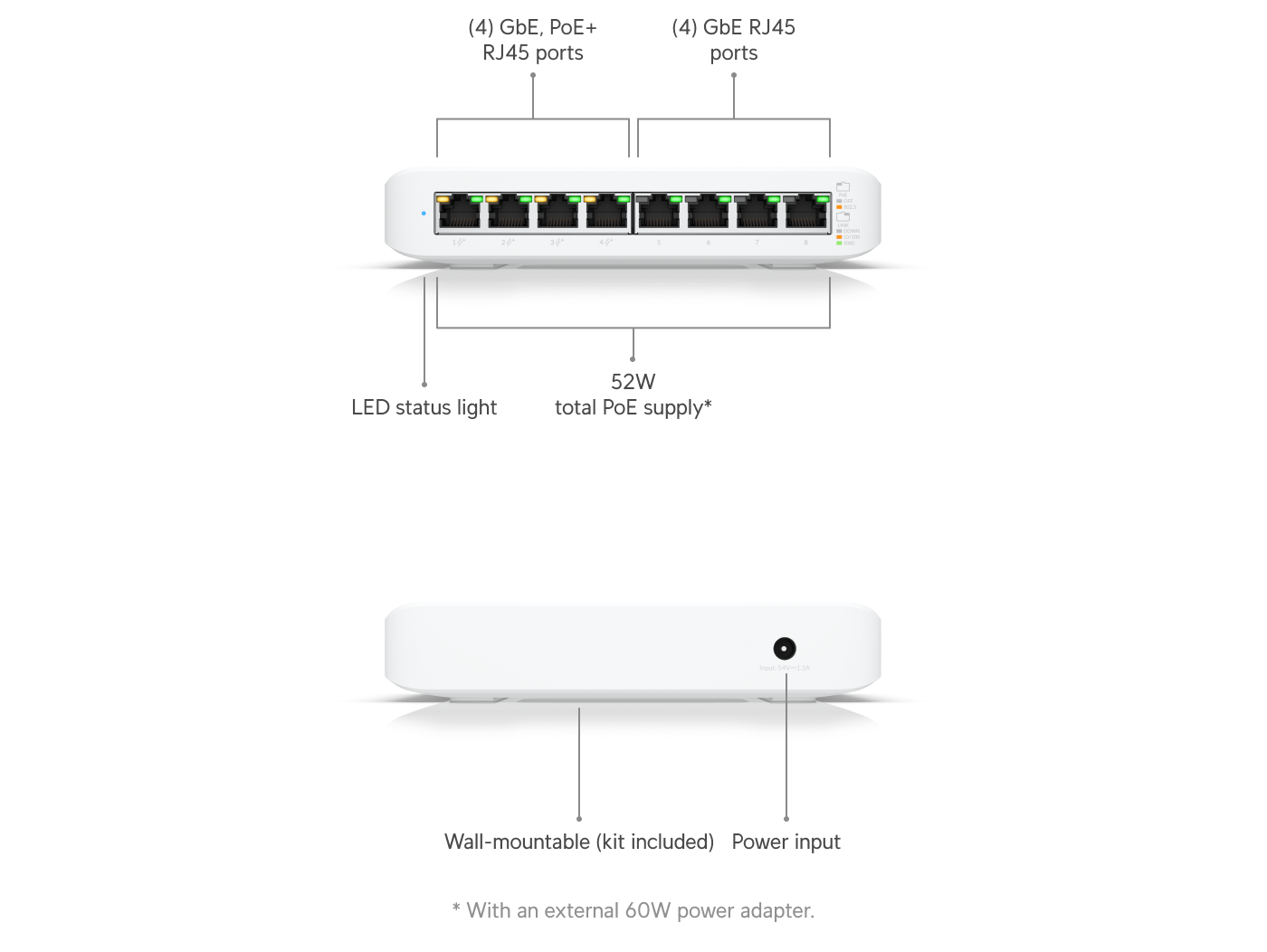

- Port layout: 8 (4 PoE+)
- Switching capacity: 16 Gbps
- PoE availability: 52W
- Form factor: Compact desktop, wall
- Power consumption: 8W (Excluding PoE Output)
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview

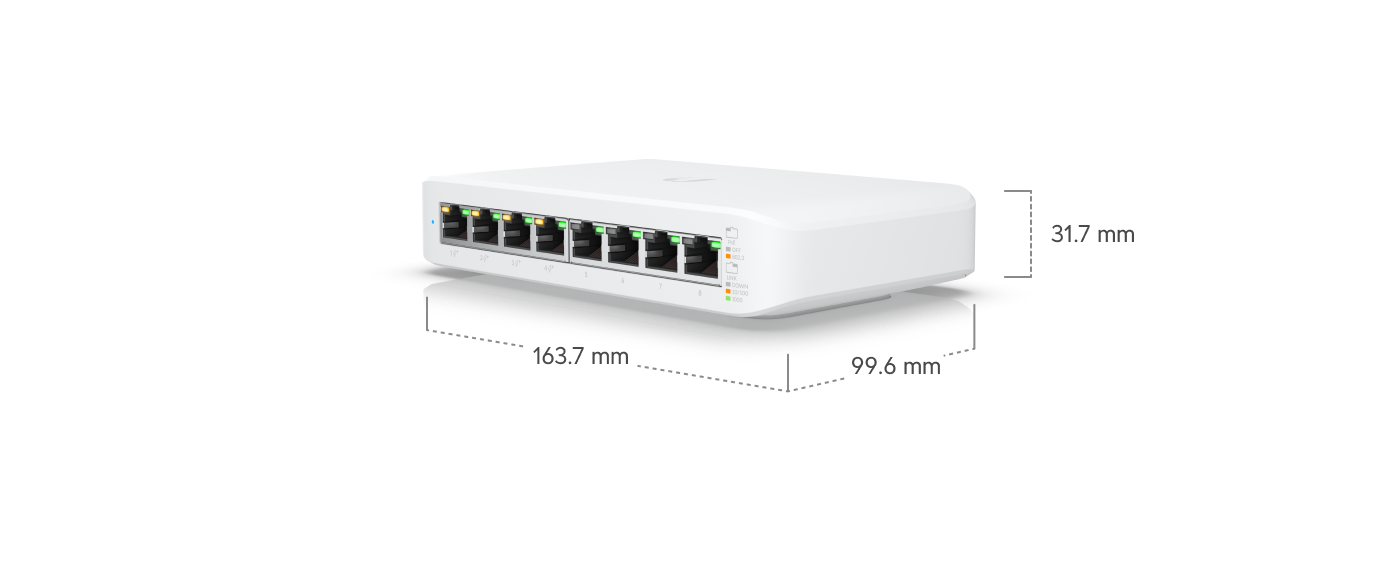

| Dimensions | 99.6 x 163.7 x 31.7 mm |
|---|---|
| Power Method | AC/DC Adapter (included) |
Hardware
| Power Consumption | 8W (Excluding PoE Output) |
|---|---|
| Voltage Range | 50–57V DC |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
Software
| App Requirement | UniFi Network Version 7.2.94 and later |
|---|
Additional specifications
| Port Layout | 1 GbE RJ45 |
|---|---|
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 52W |
| Form Factor | Compact desktop, wall |
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
