Switch Aggregation is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features
- Switching capacity: 160 Gbps
- Form factor: Rack mount (1U)
- Power consumption: 36W (Including SFP modules)
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page
Technical specifications
Overview
| Dimensions |

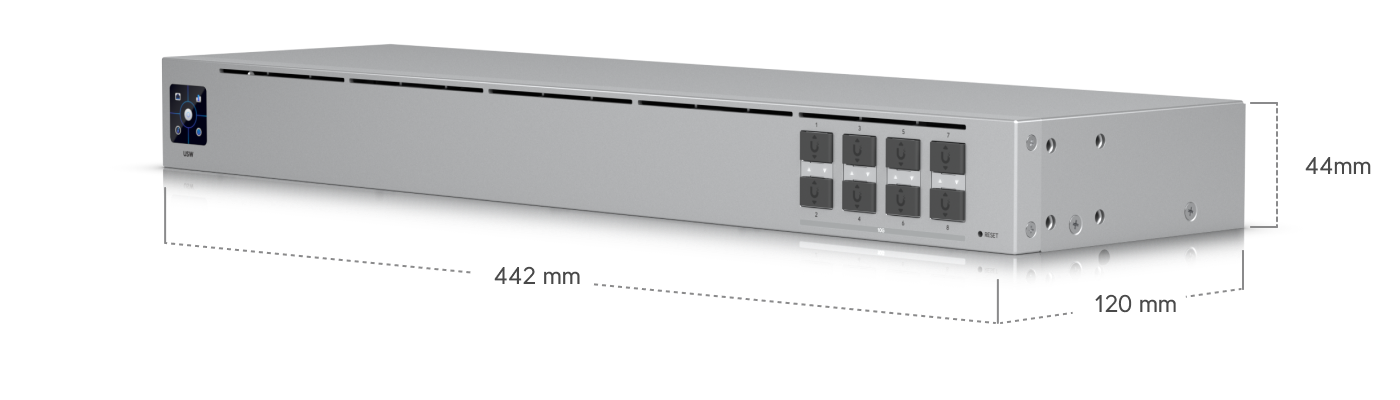

442 x 120 x 43.7 mm |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption |
36W (Including SFP modules) |
| Voltage Range |
100–240V AC |
| Weight |
Without mounting brackets: 2.6 kg (5.8 lb) |
| Enclosure Material |
SGCC steel |
Software
| App Requirement |
UniFi Network Version 5.14.12 and later |
Additional specifications
| Port Layout |
10G SFP+ |
| Form Factor |
Rack mount (1U) |
| Switching Capacity |
160 Gbps |
| Total Non-Blocking Throughput |
80 Gbps |
| Forwarding Rate |
119 Mpps |
| Supported VLANs |
1,000 |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 04456-21-08356 |
