Switch Pro 24 is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features
- Port layout: 24
- Switching capacity: 88 Gbps
- Form factor: Rack mount (1U)
- Power consumption: 30W
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview

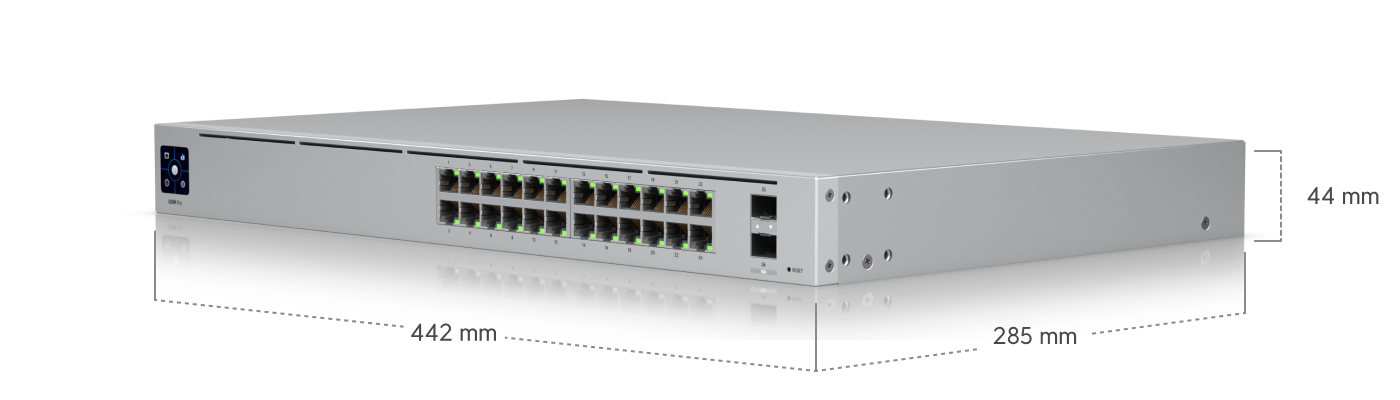

| Dimensions | 442 x 285 x 44 mm |
|---|---|
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption | 30W |
|---|---|
| Voltage Range | 100–240V AC |
| Weight | Without mounting brackets: 3.5 kg (7.7 lb) |
| Enclosure Material | SGCC steel |
Software
| App Requirement | UniFi Network Version 5.12.11 and later |
|---|
Additional specifications
| Port Layout | 1 GbE RJ45 |
|---|---|
| Form Factor | Rack mount (1U) |
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Supported VLANs | 1,000 |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 00469-21-08356 |
