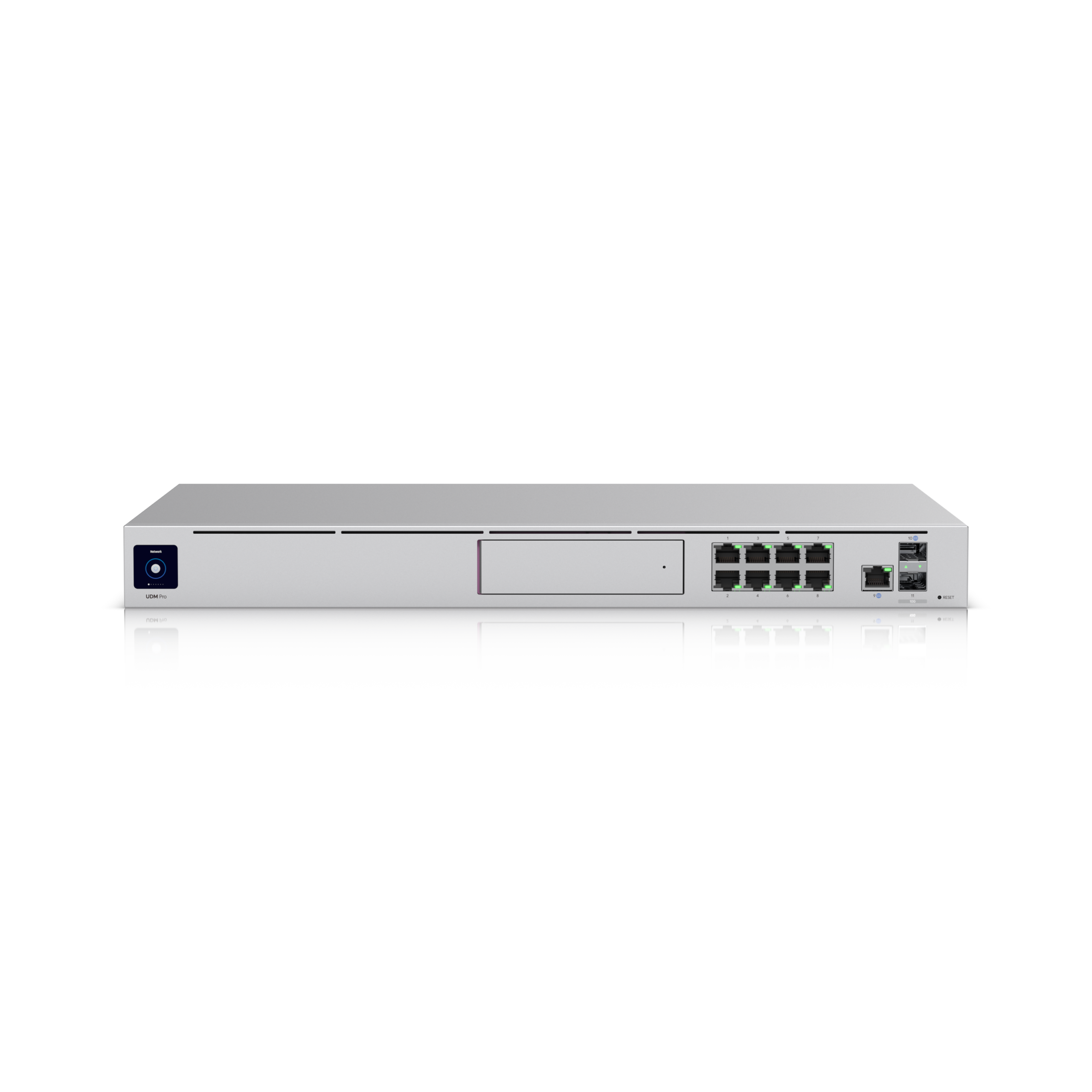

Dream Machine Pro is a Ubiquiti UniFi gateway and management appliance for centrally administered networks.
Key features
- Managed devices: 100+
- Connected users: 1,000+
- IDS/IPS throughput: 3.5 Gbps
- Form factor: Rack mount (1U)
- Power consumption: 33W
Applications
Suitable for business networks that require UniFi application hosting, routing and security management within the verified capacity limits.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview

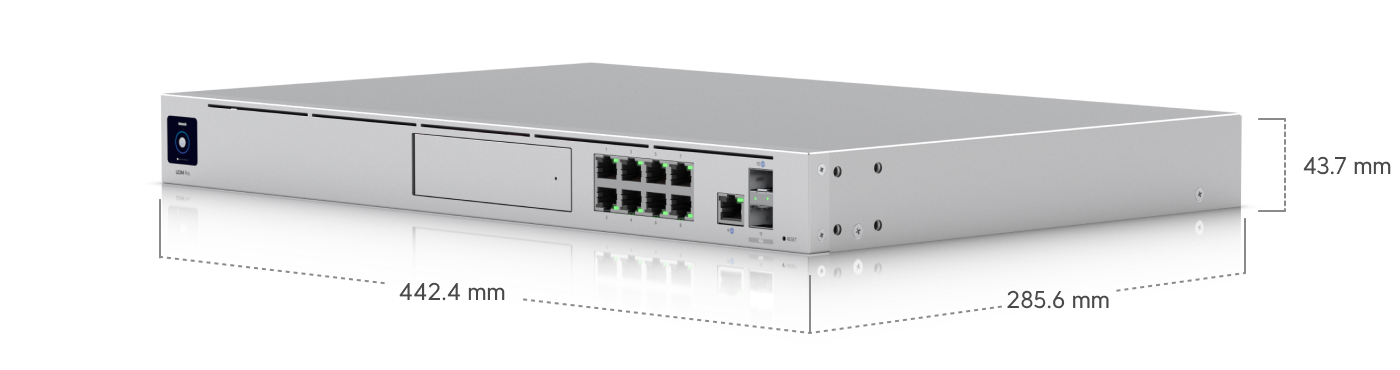

| Dimensions | 442.4 x 43.7 x 285.6 mm |
|---|---|
| Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption | 33W |
|---|---|
| Voltage Range | 100–240V AC |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
Additional specifications

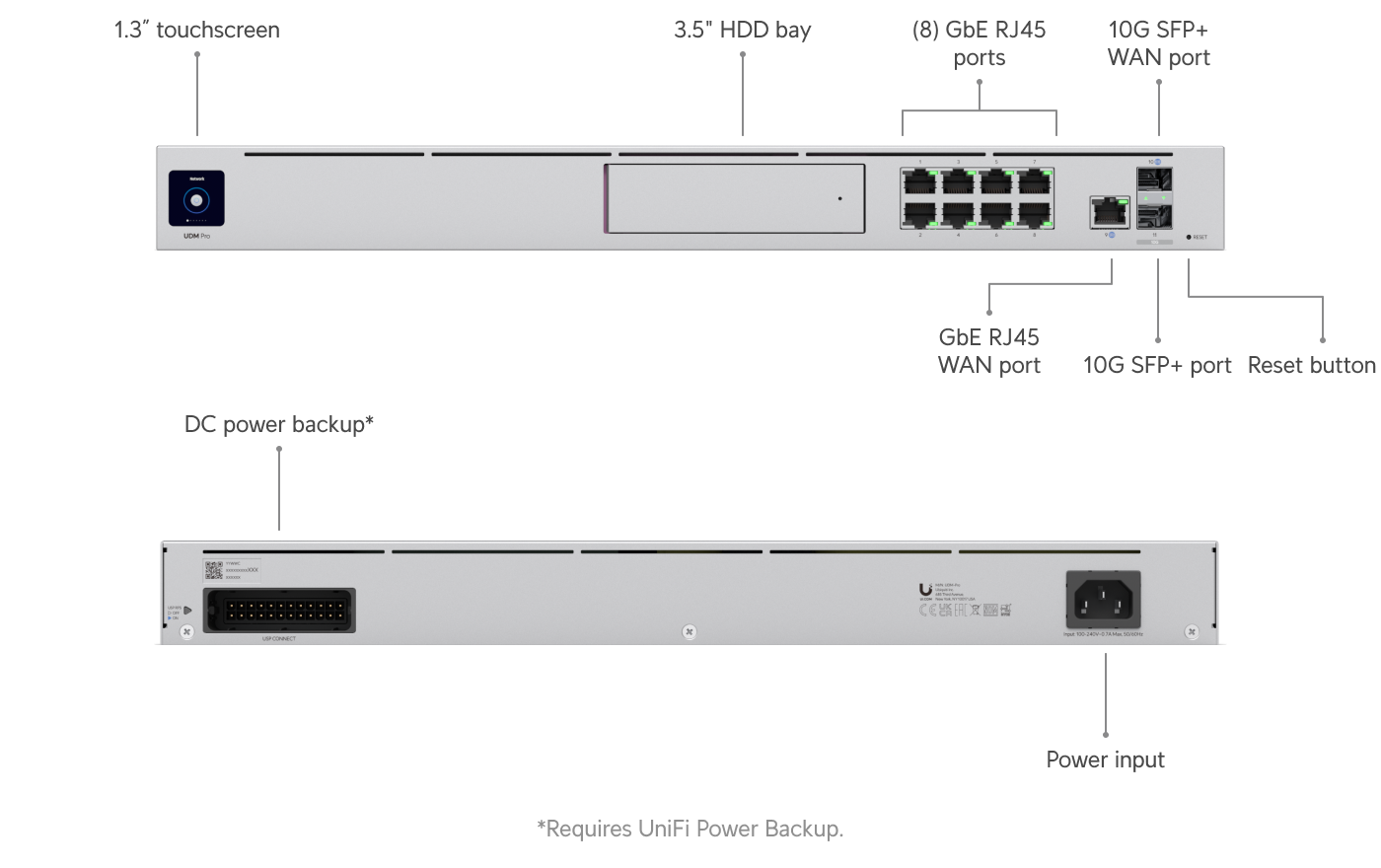

| Port Layout | 1 GbE RJ45 |
|---|---|
| Form Factor | Rack mount (1U) |
| IDS/IPS Throughput | 3.5 Gbps |
| Managed UniFi Devices | 100+ |
| Simultaneous Users Connected | 1,000+ |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
