Switch Flex is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features

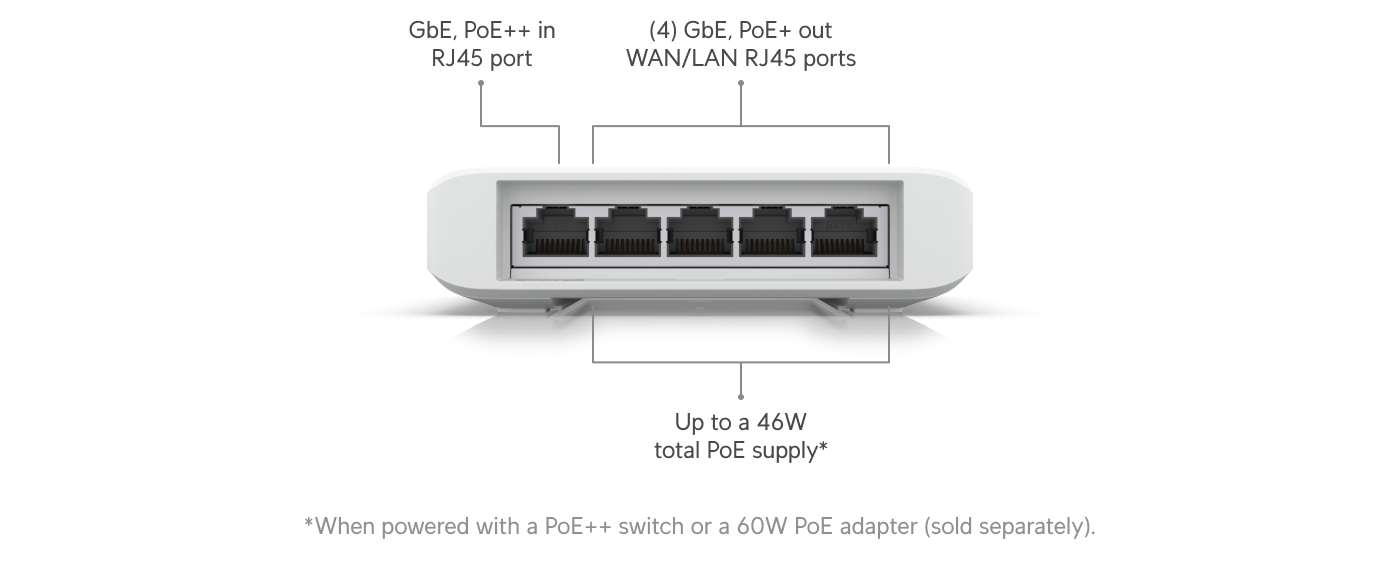

- Port layout: 5 (4 PoE+; 1 PoE++)
- Switching capacity: 10 Gbps
- PoE availability: PoE++/60W PoE adapter input: 46W
- Form factor: Compact desktop, wall, pole
- Power consumption: 5W (Excluding PoE Output)
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page | Official datasheet
Technical specifications
Overview
| Dimensions | 122.5 x 107.1 x 28 mm |
|---|---|
| Power Method | PoE++ |
Hardware
| Power Consumption | 5W (Excluding PoE Output) |
|---|---|
| Voltage Range | 50–57V PoE |
| Weight | 230 g (8.1 oz) |
Software
| App Requirement | UniFi Network Version 5.10.3 and later |
|---|
Additional specifications
| Port Layout | 1 GbE RJ45 |
|---|---|
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++/60W PoE adapter input: 46W |
| Form Factor | Compact desktop, wall, pole |
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| Ambient Operating Temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
