Mimosa N5-X Series Modular Antennas

Product Overview

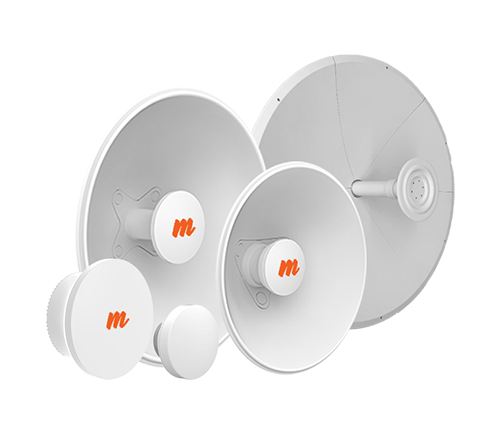

The Mimosa N5-X Series is a modular twist-on antenna family designed for compatible Mimosa X-series radios. The current product information lists 12, 16, 20, 25 and 30 dBi gain options across horn and dish configurations.

Available Antenna Options

• N5-X12: 12 dBi, 0.16 kg, diameter 76 mm, depth 67 mm, front-to-side ratio 27 dB
• N5-X16: 16 dBi, 0.61 kg, diameter 160 mm, depth 116 mm, front-to-side ratio 50 dB
• N5-X20: 20 dBi, 0.77 kg, diameter 270 mm, depth 83 mm, front-to-side ratio 35 dB
• N5-X25: 25 dBi, 0.98 kg, diameter 429 mm, depth 116 mm, front-to-side ratio 40 dB
• N5-X30: 30 dBi, 6.5 kg, 600 x 600 x 330.2 mm

Compatibility

N5-X antennas are designed to work with Mimosa C6x, C6x Lite Edition and B6x radios. The antennas twist directly into compatible radio ports; compatible radios have a built-in 8 dBi antenna.

Frequency

4.9–6.425 GHz is listed for the N5-X family; actual operating range is subject to the compatible radio and regulatory region.
