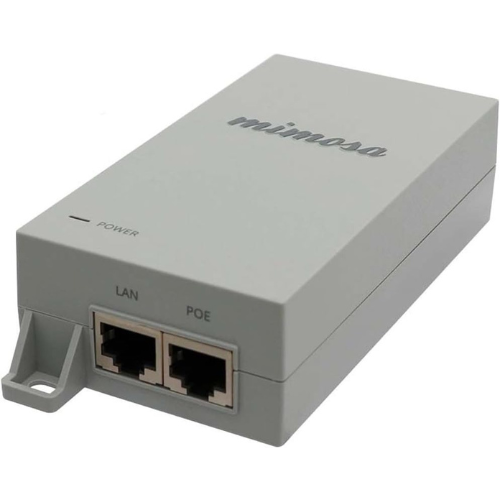

Mimosa Gigabit PoE Injector 24V

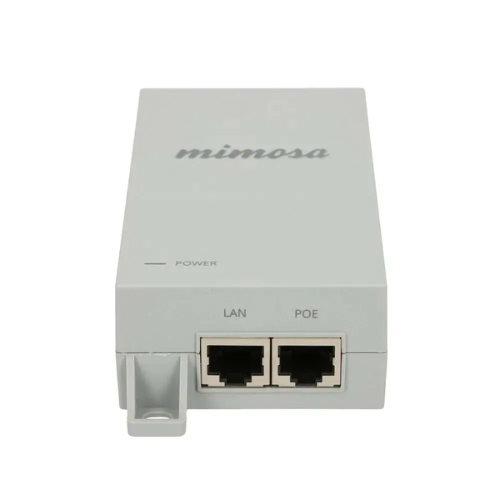

Mimosa Gigabit PoE Injector 24V - Image 2

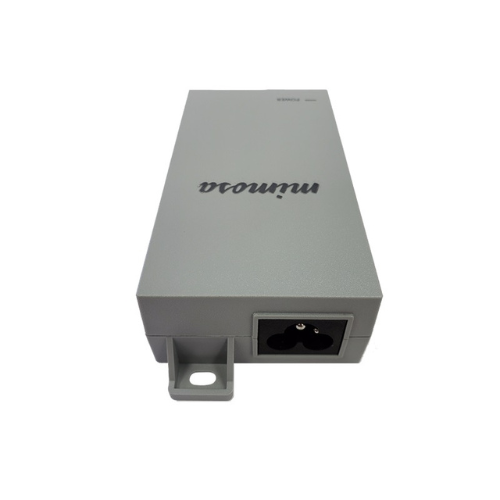

Mimosa Gigabit PoE Injector 24V - Image 3

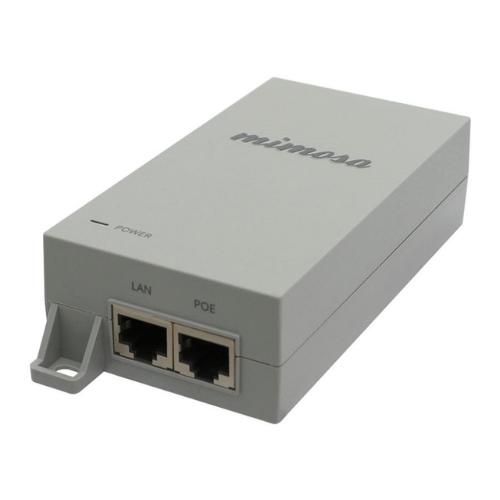

Mimosa Gigabit PoE Injector 24V - Image 4

Mimosa Gigabit PoE Injector 24V

Gigabit PoE injector providing 24 V DC output at 0.5 A for compatible Mimosa devices.

SKU: 500-00025 Category: PoE Products Tags: 24V, Gigabit PoE, Mimosa, PoE Injector Brand: Mimosa

Key Specifications

Part Number: 500-00025
Output Voltage: 24 V DC
Output Current: 0.5 A
Maximum Load: 12 W
Dimensions: 97 x 53.5 x 35.5 mm
Weight: 0.13 kg (4.6 oz)
Color: Gray
Gigabit LAN: Yes, 2 x RJ-45
Pinout: Pins 1/2 and 4/5 +24 V; pins 3/6 and 7/8 GND
Input Voltage: 100–240 VAC, 50/60 Hz; max 0.75 A
Input Current: 0.5 A @ 90 VAC

Weight	0.13 kg
Dimensions	9.7 × 5.35 × 3.55 cm
