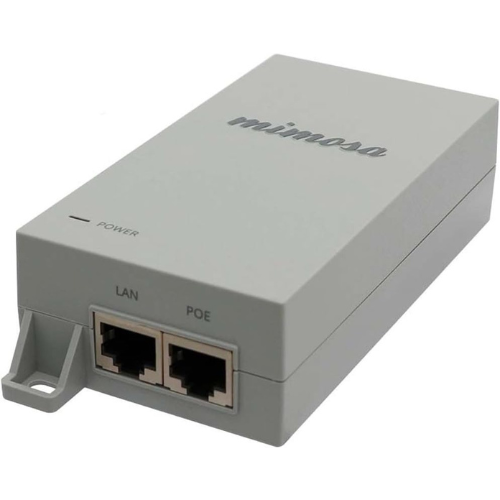

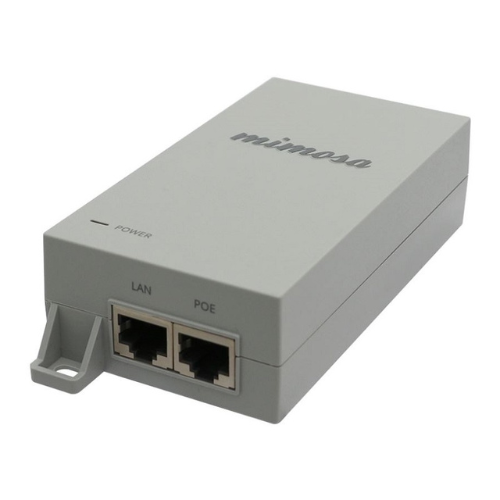

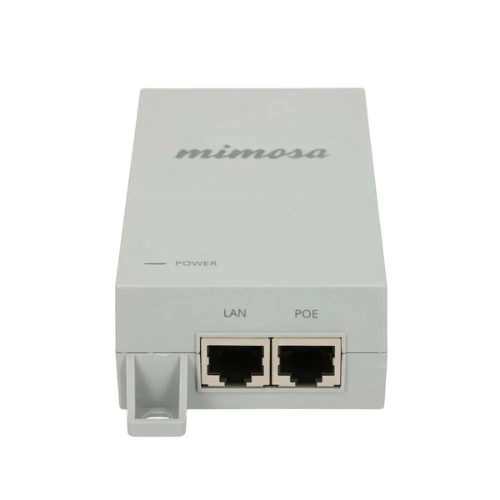

Mimosa Gigabit PoE Injector 50V

Mimosa Gigabit PoE Injector 50V - Image 2

Mimosa Gigabit PoE Injector 50V - Image 3

Mimosa Gigabit PoE Injector 50V - Image 4

Mimosa Gigabit PoE Injector 50V

Gigabit PoE injector providing 50 V DC output at 1.2 A / 60 W for compatible Mimosa devices.

SKU: 500-00022 Category: PoE Products Tags: 50V, 60W, Gigabit PoE, Mimosa, PoE Injector Brand: Mimosa

Key Specifications

Part Number: 500-00022
Output Voltage: 50 V DC
Output Current: 1.2 A
Maximum Load: 60 W
Dimensions: 138 x 62 x 35 mm (L x W x H)
Weight: 0.24 kg (8.8 oz)
Color: Gray
Gigabit LAN: Yes, 2 x RJ-45
Pinout: Pins 1/2 and 4/5 +50 V; pins 3/6 and 7/8 GND
Input Voltage: 100–240 VAC, 50/60 Hz; max 1.5 A
Input Current: 1.5 A @ 115 VAC; 1.0 A @ 230 VAC

Weight	0.24 kg
Dimensions	13.8 × 6.2 × 3.5 cm
