Product Overview

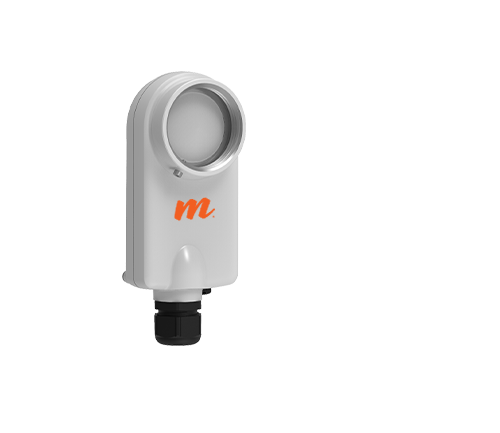

The Mimosa C5x is a modular 5 GHz client and backhaul radio for PTP and PTMP deployments. Its twist-on antenna architecture supports multiple N5-X antenna options, allowing flexible short-to-long range deployment.
Key Specifications
- PTP Throughput: Up to 700 Mbps
- PTMP Throughput: Up to 500 Mbps
- Frequency: 4.90–6.425 GHz
- Antenna Gain Options: 8–30 dBi
- Dimensions: 175 mm H x 70 mm W x 61 mm D
- Weight: 0.37 kg (0.82 lbs)
- Power Consumption: 12.9 W Max
- Max Output Power: 27 dBm
- IP Rating: IP67
- Antenna: N5-X twist-on modular antenna family
- Mounting: Dual-pole mounts / supplied clamps
In the Box
One C5x radio, two clamps, and installation/user guide. PoE is sold separately.
