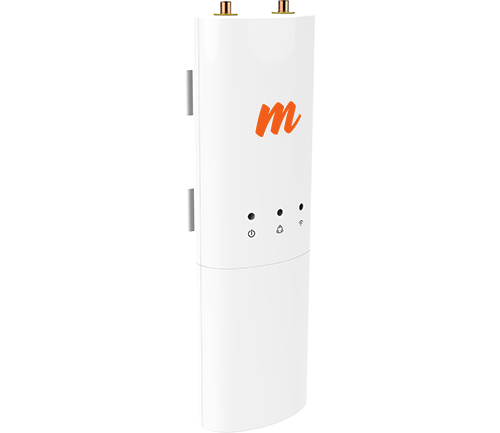

Mimosa C5c Connectorized Client Radio

Product Overview

The Mimosa C5c is a connectorized fixed wireless radio designed for long-range PTP, PTMP GigaPoP, and PTMP MicroPoP deployments. It supports dual-polarization external antennas through two RP-SMA connectors and uses Mimosa Spectrum Reuse Synchronization (SRS).

Key Specifications

• PTP/PTMP Throughput: Up to 700 Mbps IP / 866 Mbps PHY
• PTMP Throughput: Up to 500 Mbps IP
• Link Distance: 100+ km (application dependent)
• Frequency: 4.90–6.425 GHz
• Antenna Gain: 27 dBi listed key specification; external antenna required
• MIMO: 2×2:2 MIMO
• Wireless Modulation: OFDM up to 256-QAM
• Bandwidth: 20/40/80 MHz, tunable to 5 MHz increments for Mimosa SRS
• Max Output Power: 27 dBm
• Dimensions: 188.4 mm H x 65 mm W x 44 mm D
• Weight: 295 g (10.4 oz)
• Power Consumption: 9.2 W Max
• Power: Passive PoE, 24–56 VDC
• IP Rating: IP55
• RF Connectors: 2 x RP-SMA female

Availability note: Mimosa states that the C5c is not available in the United States.
