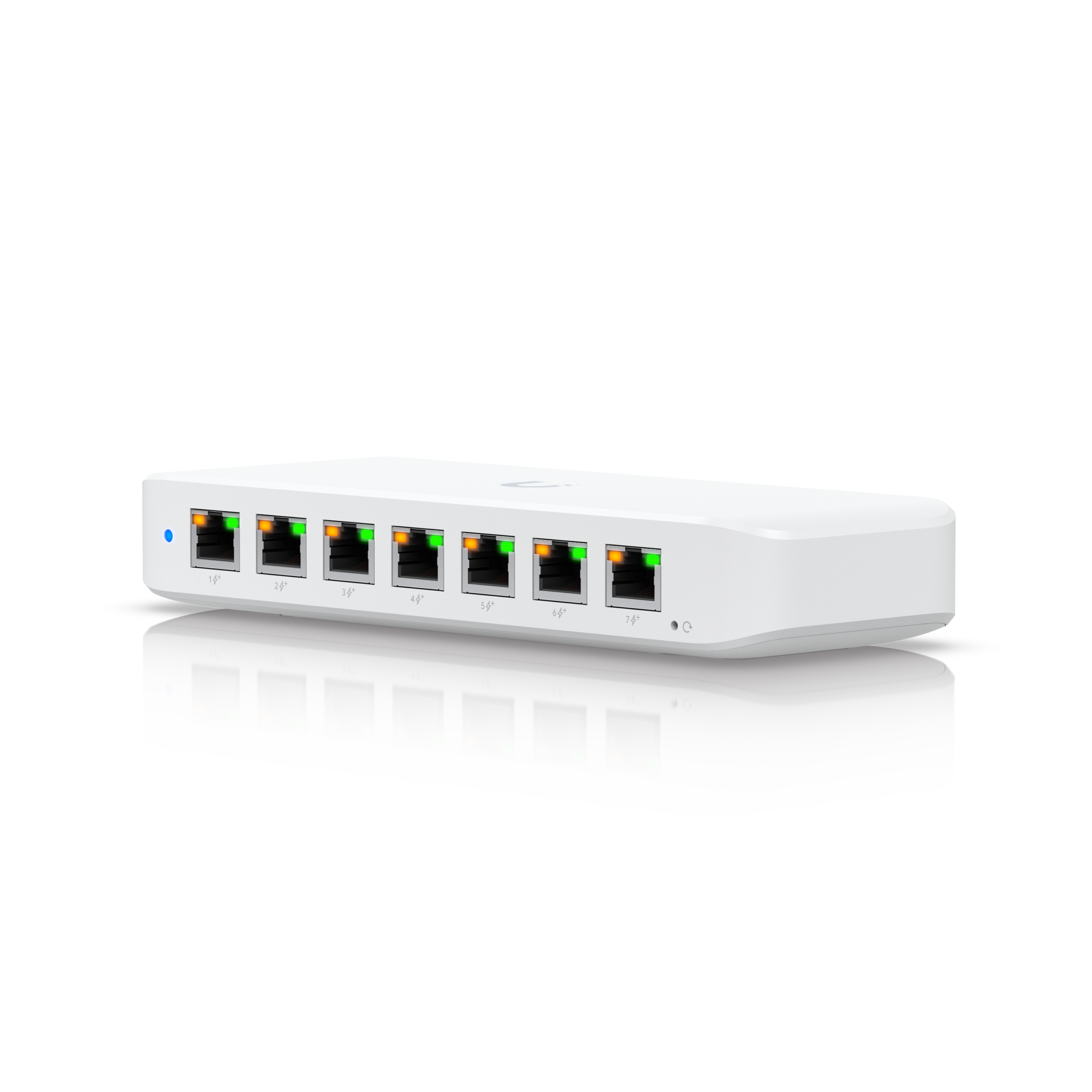

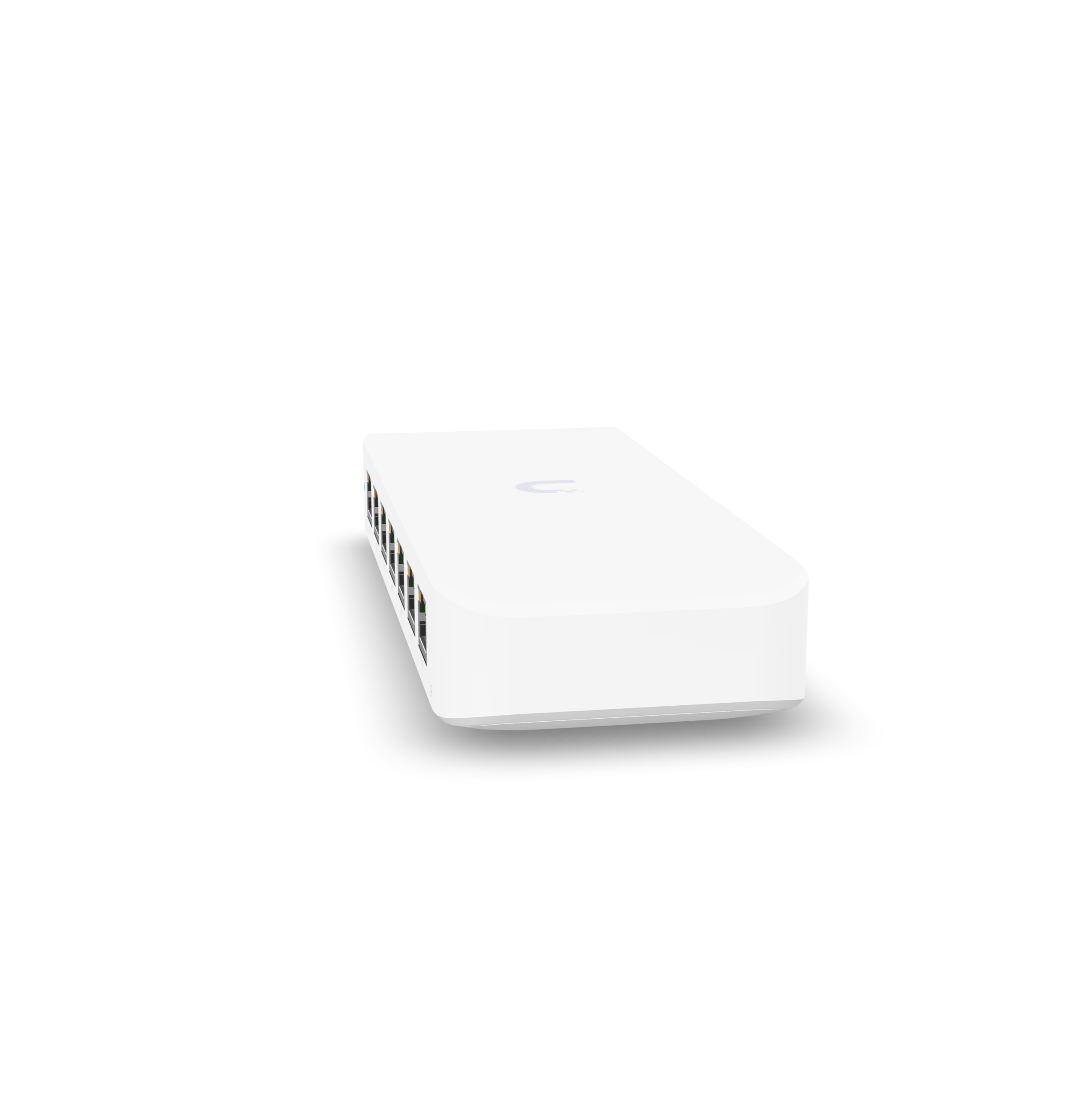

Switch Ultra 210W is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features

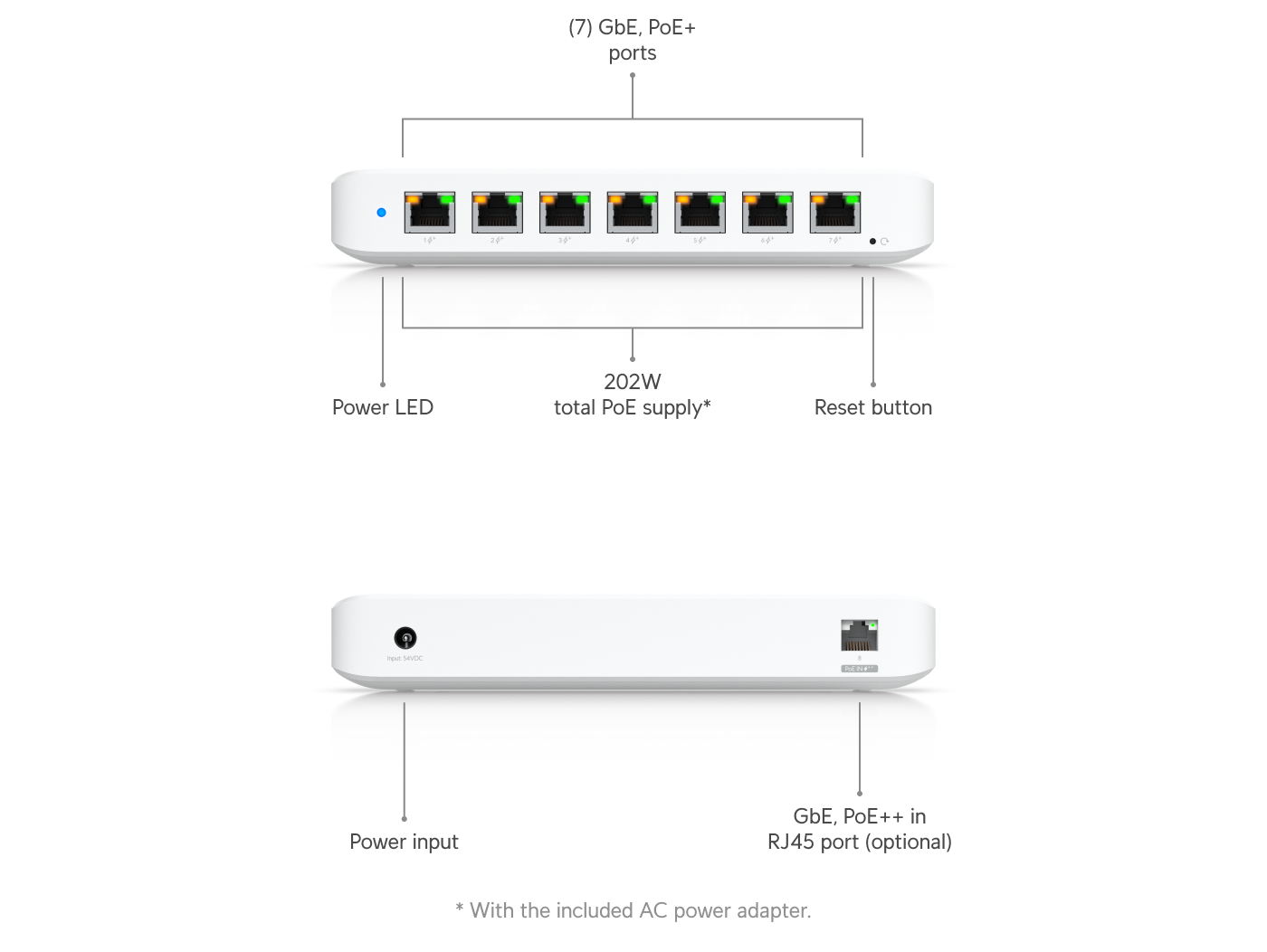

- Port layout: 8 (7 PoE+; 1 PoE++ input)
- Switching capacity: 16 Gbps
- PoE availability: PoE++ input: 42W
- Form factor: Compact desktop, wall, magnetic
- Power consumption: 9W (Excluding PoE Output) with PoE input
Applications
Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page
Technical specifications
Overview

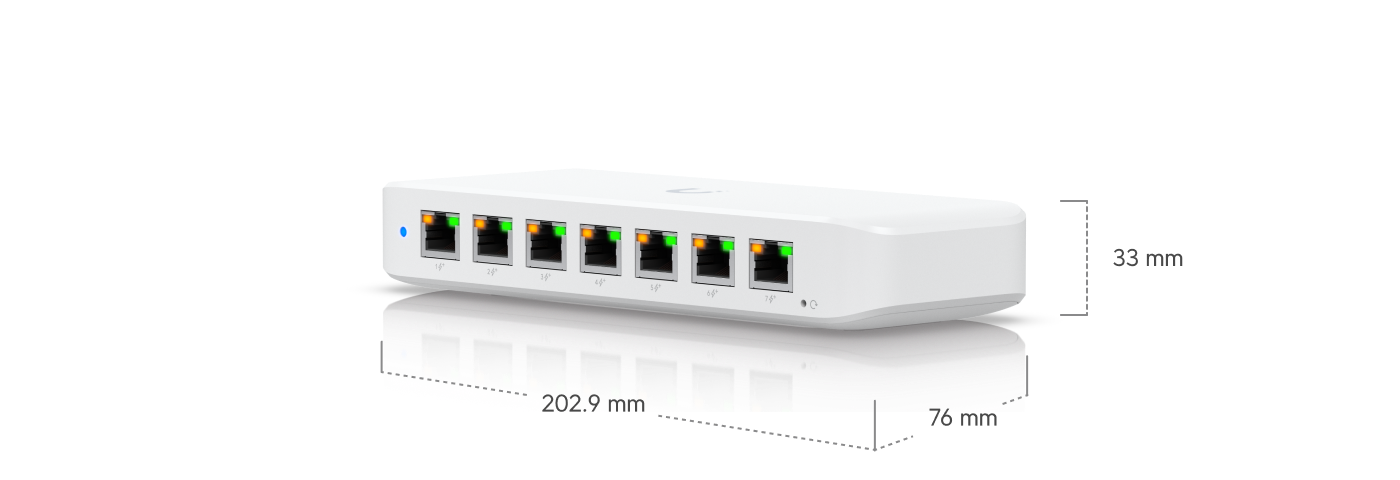

| Dimensions |
203 x 76 x 33 mm |
| Power Method |
(1) AC/DC adapter (Included) |
Hardware
| Power Consumption |
9W (Excluding PoE Output) with PoE input |
| Voltage Range |
50–57V DC/PoE |
| Weight |
Device: 320 g (11.3 oz) |
| Enclosure Material |
Polycarbonate |
Software
| App Requirement |
UniFi Network Version 8.0.7 and later |
Additional specifications
| Port Layout |
1 GbE RJ45 |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
PoE++ input: 42W |
| Form Factor |
Compact desktop, wall, magnetic |
| Switching Capacity |
16 Gbps |
| Total Non-Blocking Throughput |
8 Gbps |
| Forwarding Rate |
12 Mpps |
| Supported VLANs |
256 |
| Ambient Operating Temperature |
PoE++ input: -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06367-24-08356 |
