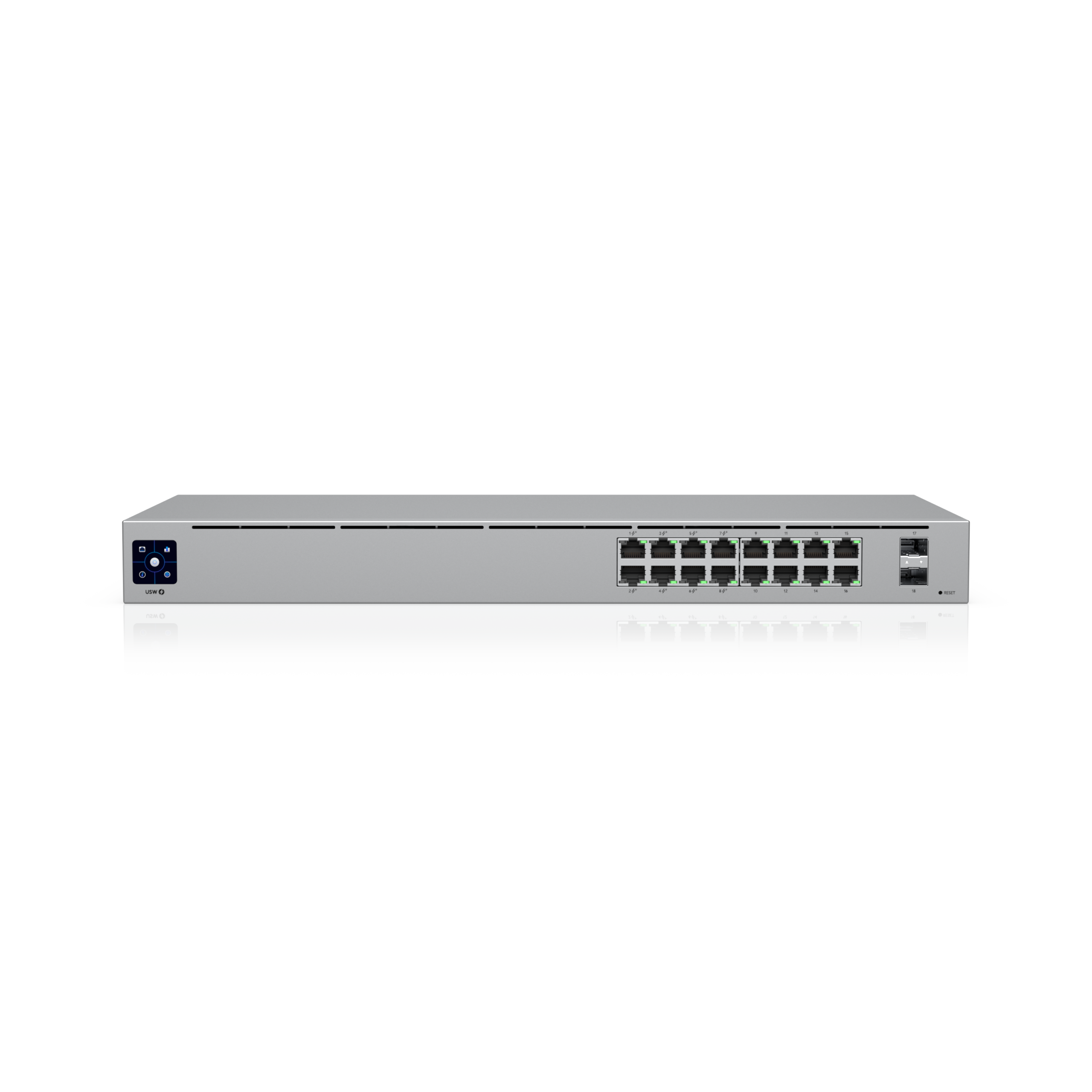

Switch 16 PoE is a managed Ubiquiti UniFi switch for structured business network deployments.
Key features

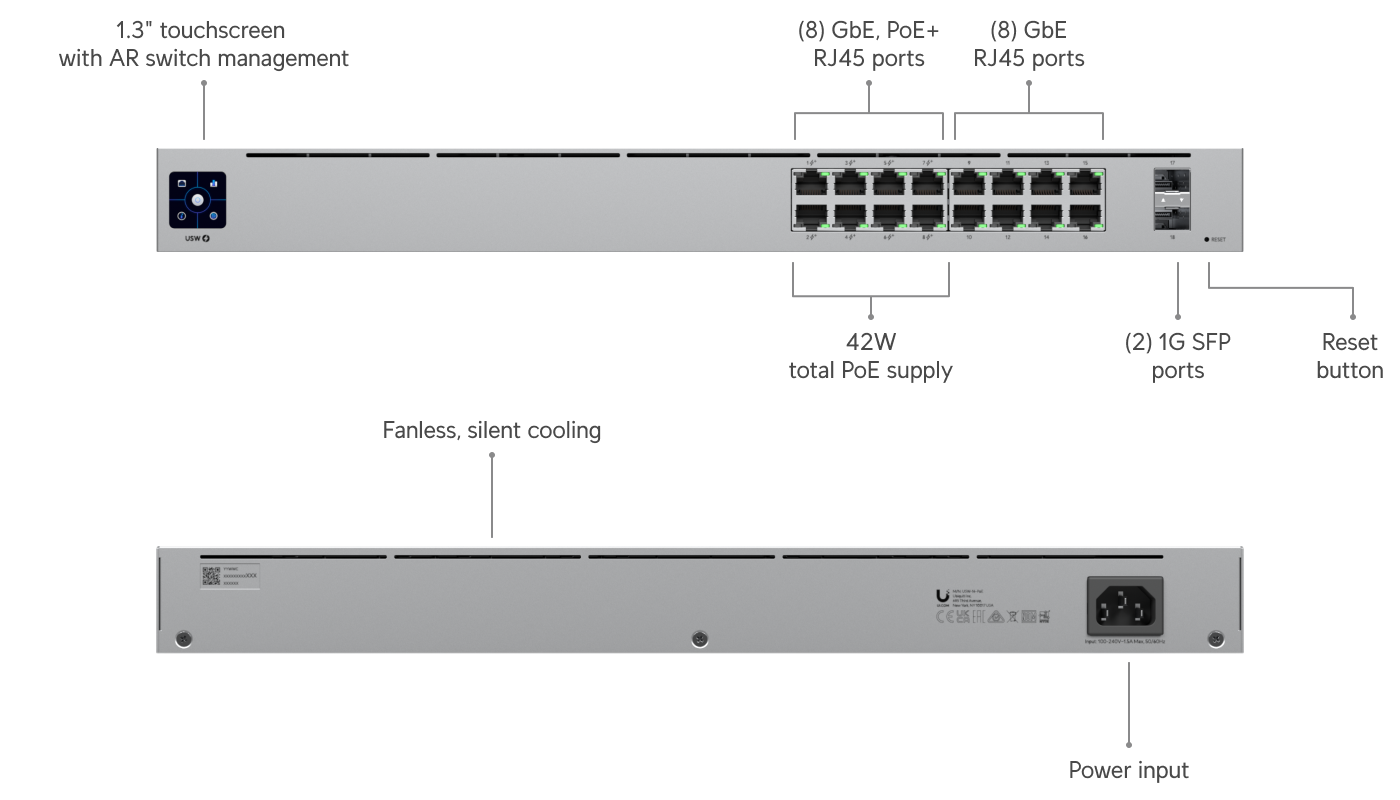

- Port layout: 16 (8 PoE+)
- Switching capacity: 36 Gbps
- PoE availability: 42W
- Form factor: Rack mount (1U)
- Power consumption: 18W (Excluding PoE Output)
Applications

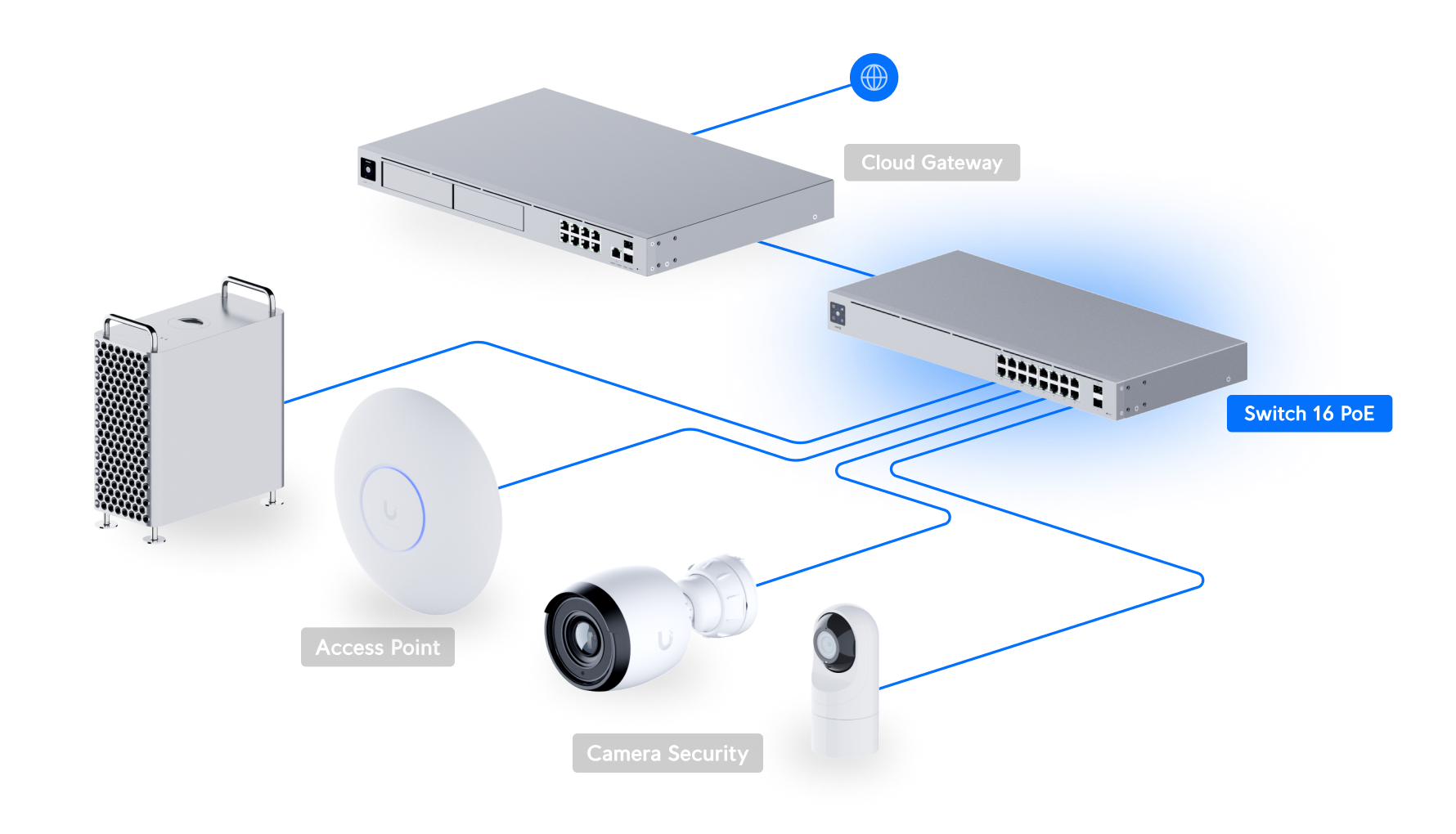

Suitable for managed LAN deployments, access-layer switching or network aggregation according to the port and PoE requirements shown.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page
Technical specifications
Overview

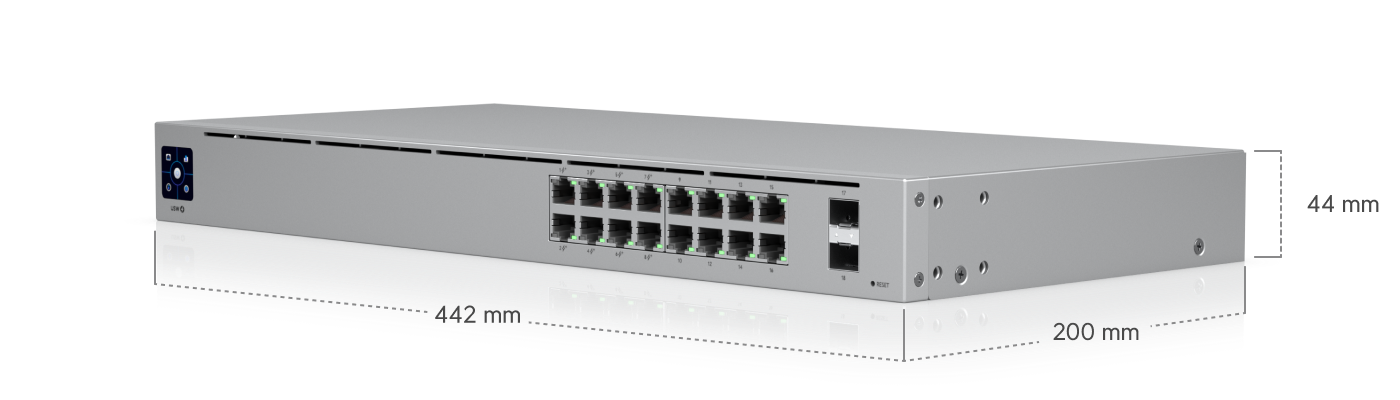

| Dimensions |
442 x 200 x 44 mm |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
Hardware
| Power Consumption |
18W (Excluding PoE Output) |
| Voltage Range |
100–240V AC |
| Weight |
Without mounting brackets: 2.8 kg (6.2 lb) |
| Enclosure Material |
SGCC steel |
Software
| App Requirement |
UniFi Network Version 7.2.94 and later |
Additional specifications
| Port Layout |
1 GbE RJ45 |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
42W |
| Form Factor |
Rack mount (1U) |
| Switching Capacity |
36 Gbps |
| Total Non-Blocking Throughput |
18 Gbps |
| Forwarding Rate |
27 Mpps |
| Supported VLANs |
1,000 |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 00593-21-08356 |
