Mimosa A5x Access Point

Product Overview

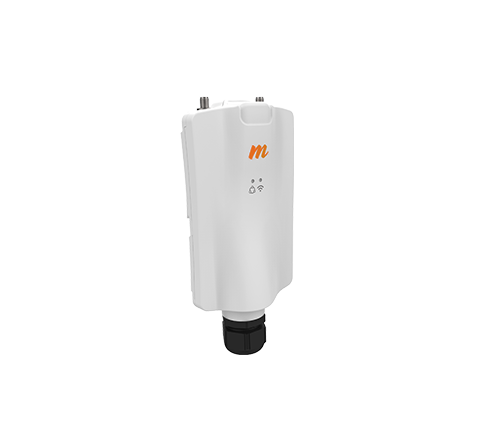

The Mimosa A5x is a compact 2×2 connectorized access point designed for short-to-mid-range Point-to-Multipoint deployments on poles and towers. It delivers up to 700 Mbps IP throughput and supports a wide operating frequency range depending on region.

Key Specifications

• Aggregate Speed: 700 Mbps
• Link Distance: 8+ km
• Frequency: 5150–5850 MHz FCC/ETSI/CA; 4900–6400 MHz ROW
• MIMO: 2×2
• Dimensions: 188.4 mm H x 75 mm W x 44 mm D
• Weight: 0.30 kg (0.70 lbs)
• Power Consumption: 9–12.9 W Max
• IP Rating: IP67
• Connector: Connectorized external antenna interface
• Recommended Antenna: Mimosa N5-45×2 sector antenna
• Beamforming: Not supported; A5x is 2×2

Compatibility

The A5x works with the modular C5x and connectorized C5c client radios for Mimosa SRS/GPS synchronization.
