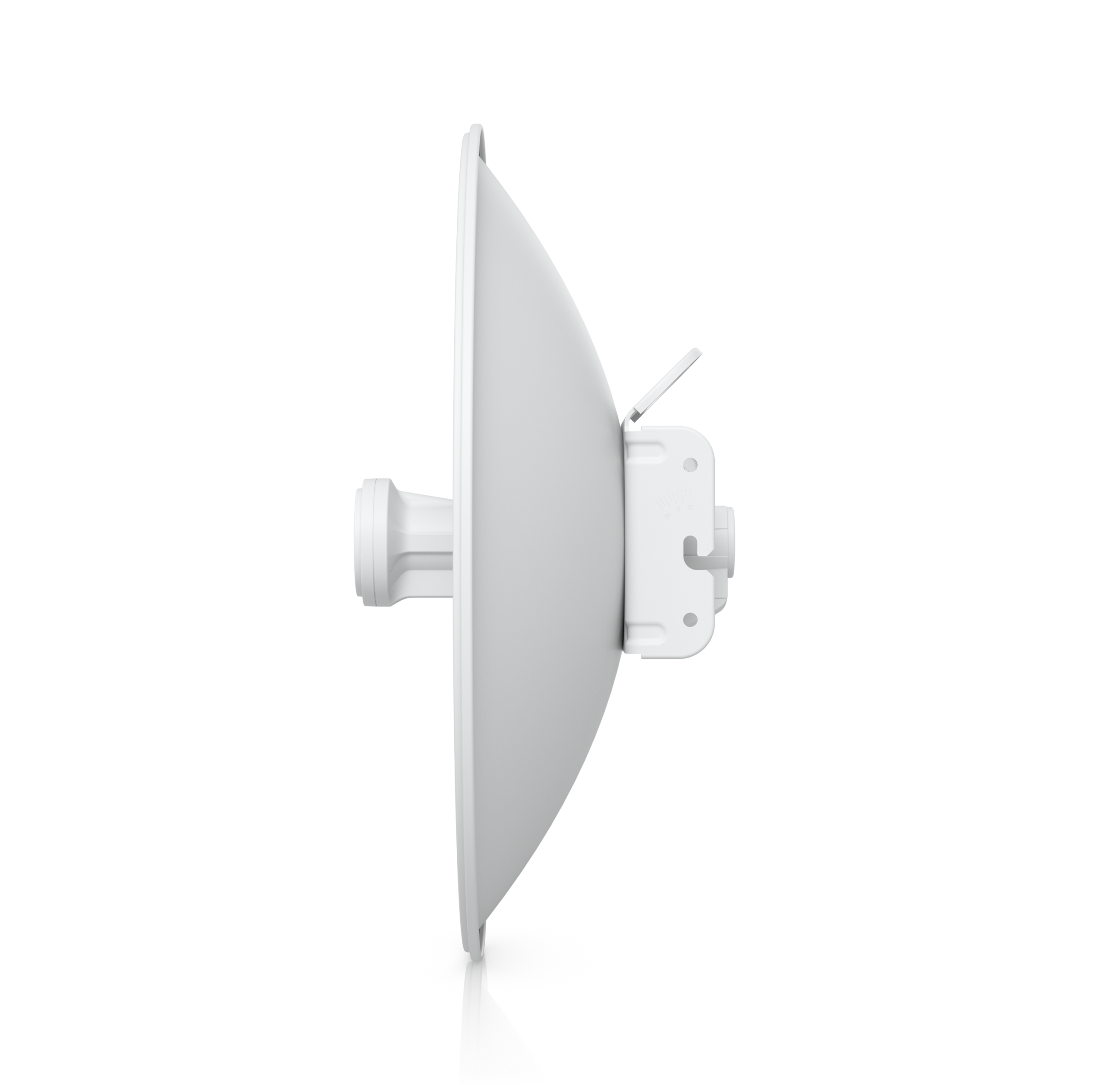

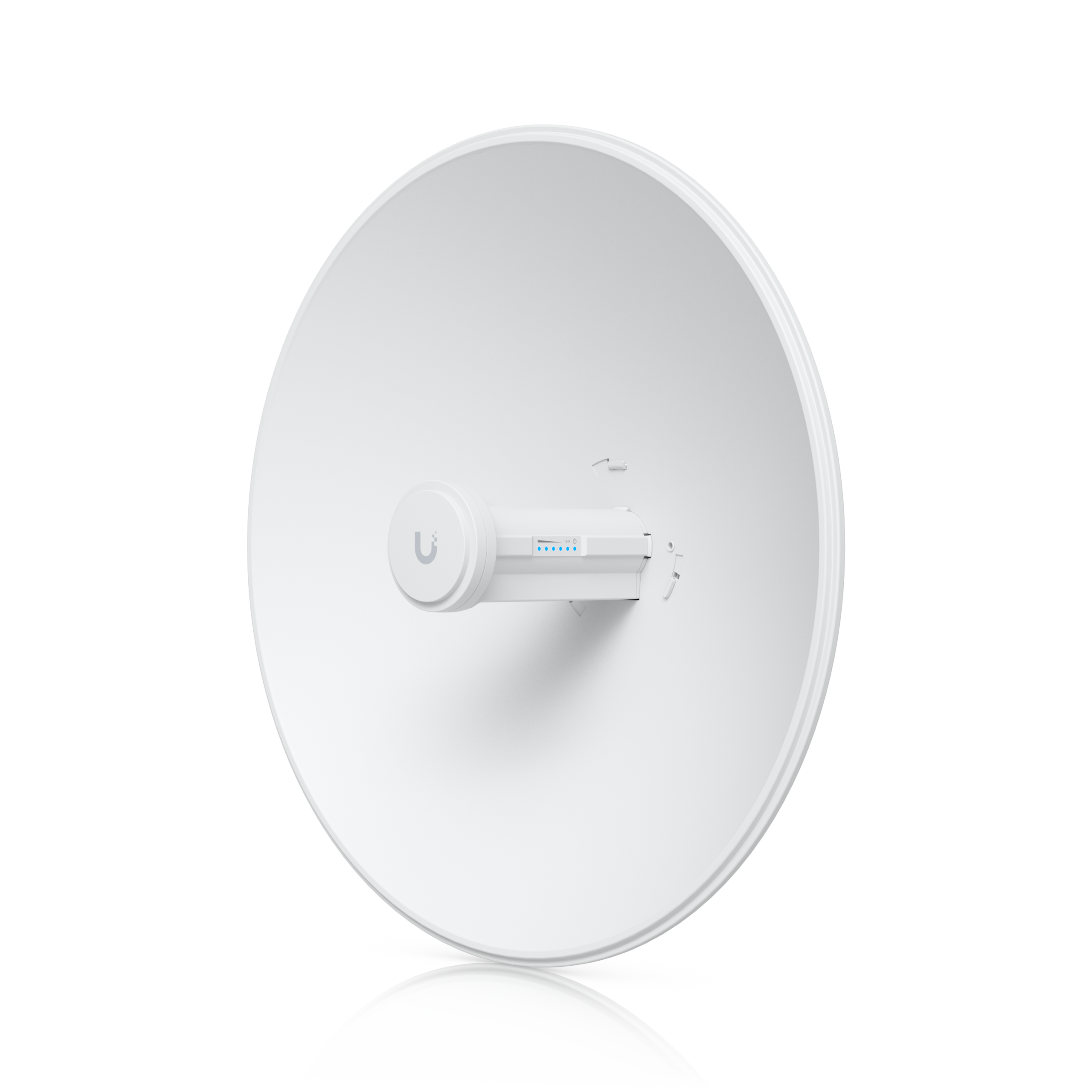

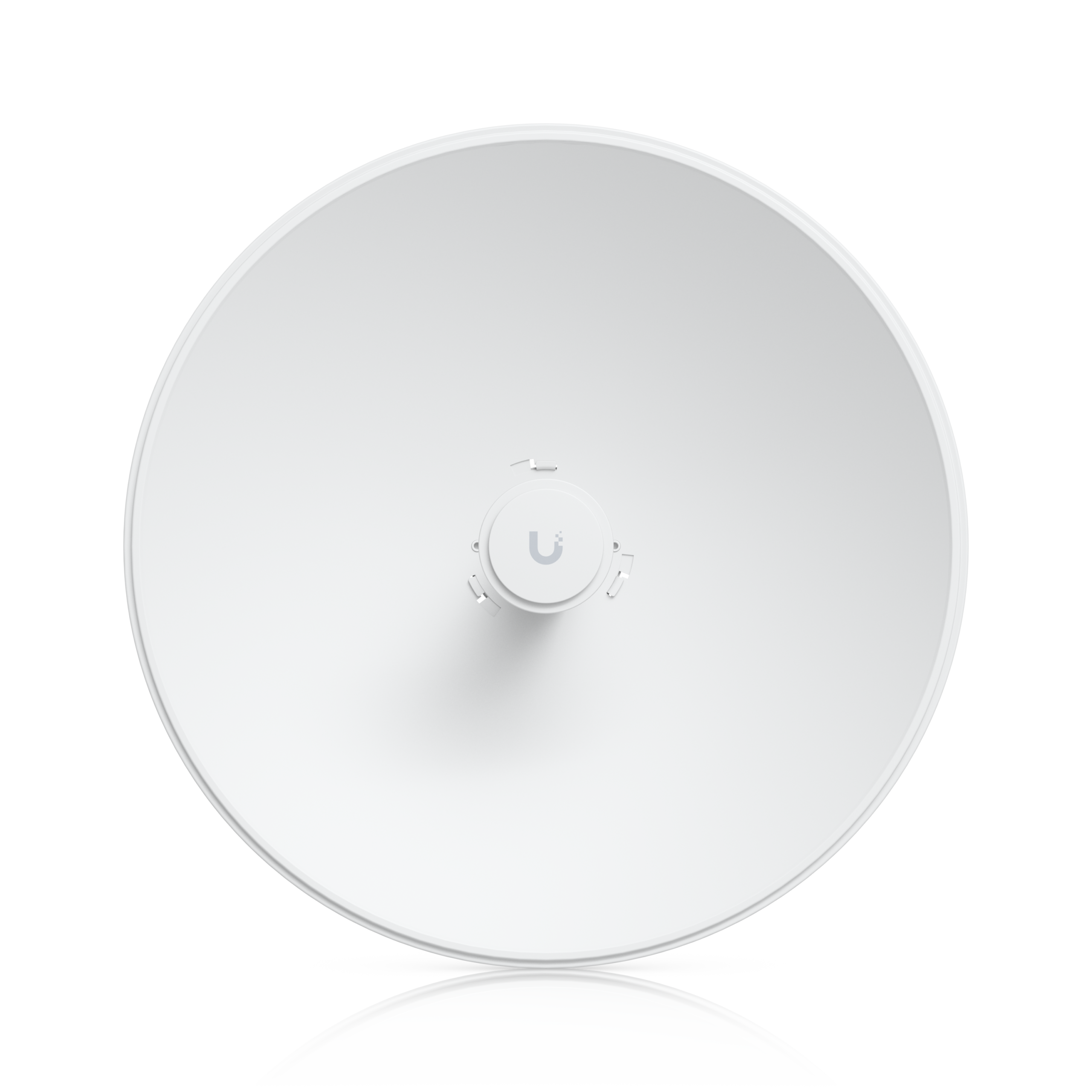

airMAX PowerBeam 5AC Bridge is a Ubiquiti airMAX outdoor wireless device for fixed wireless links and UISP deployments.
Key features
- Networking interface: (1) GbE RJ45 port
- Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
- Antenna gain: 25 dBi

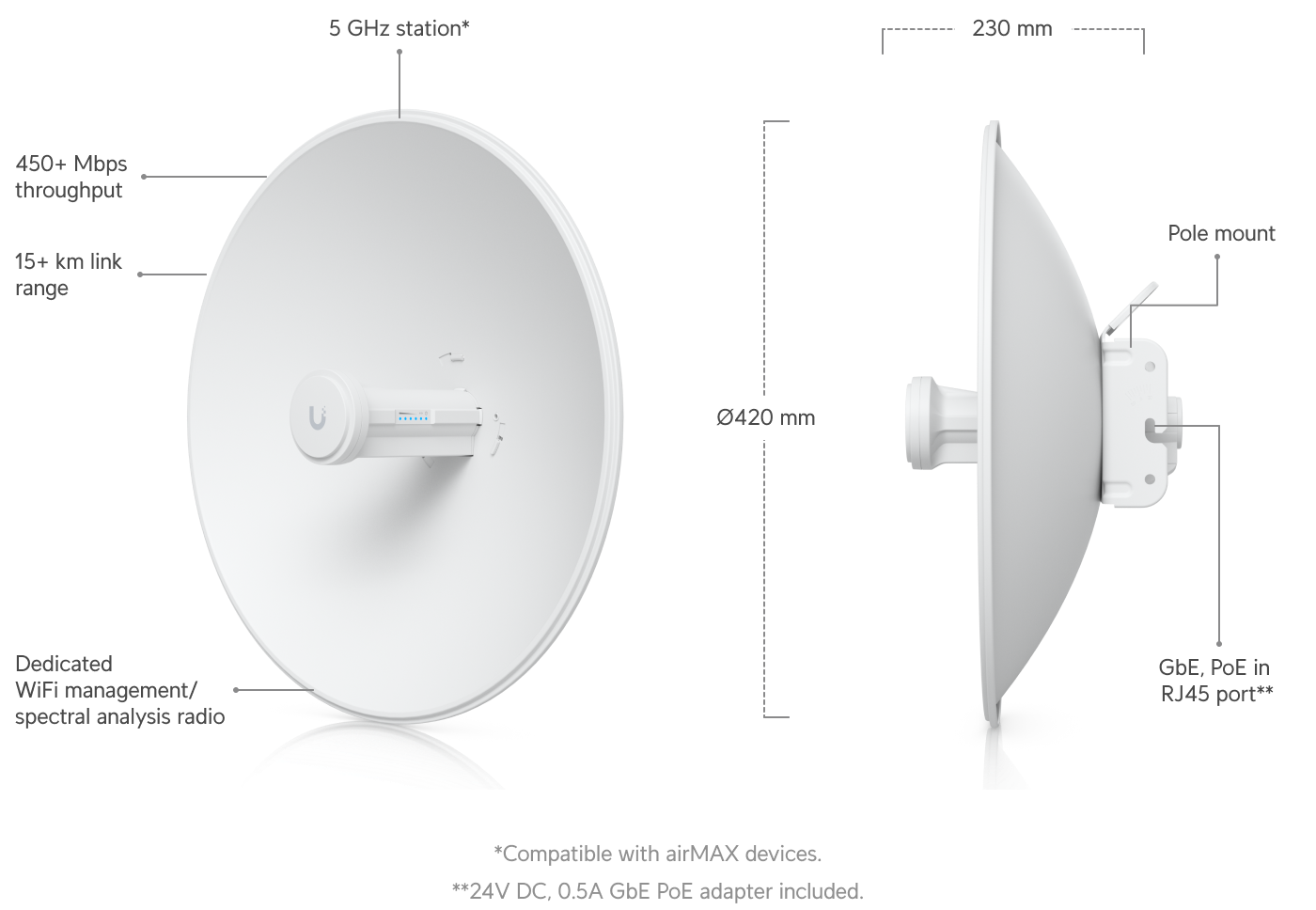

- Dimensions: 420 x 420 x 230 mm
Applications
Suitable for point-to-point or point-to-multipoint links where its frequency, antenna and regulatory characteristics match the planned deployment.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Technical specifications
Overview
| Dimensions | 420 x 420 x 230 mm |
|---|---|
| Mounting | Pole Mount (Included) |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Hardware
| Power Consumption | 8.5W |
|---|---|
| Voltage Range | 20—27V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 2.2 kg (4.9 lb) |
Additional specifications
| Antenna Gain | 25 dBi |
|---|---|
| Ambient Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, RoHS, Anatel: 12697-20-08356 |
