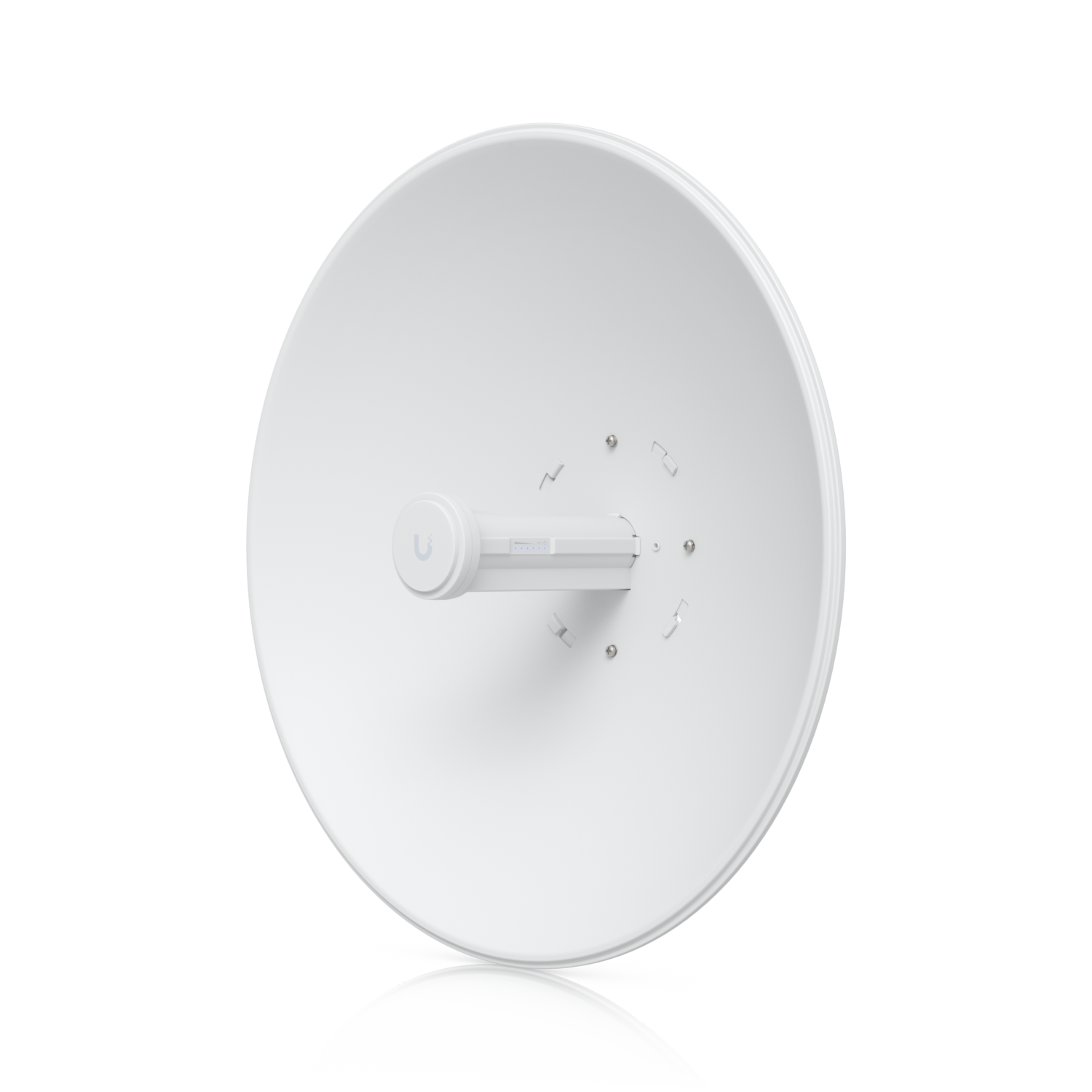

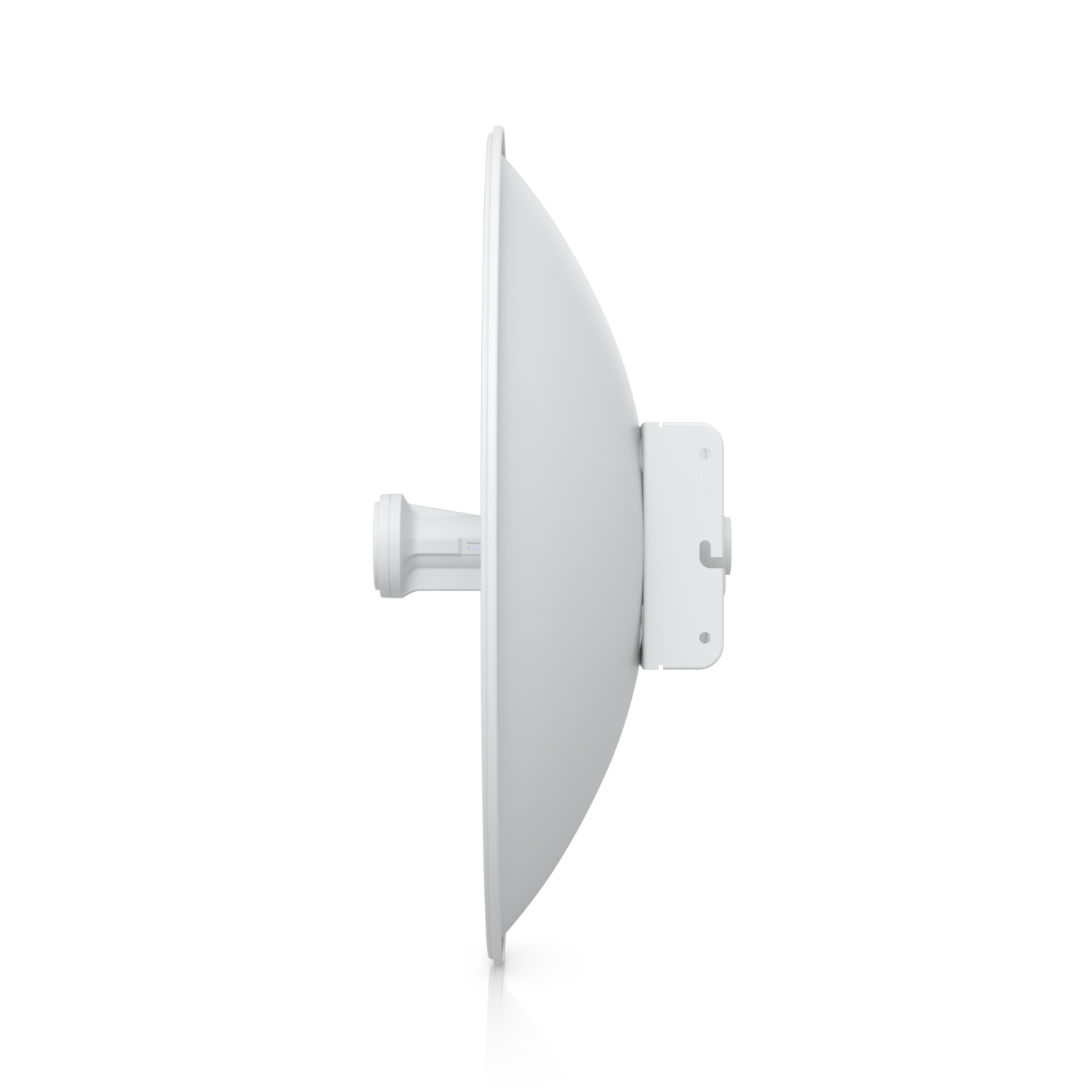

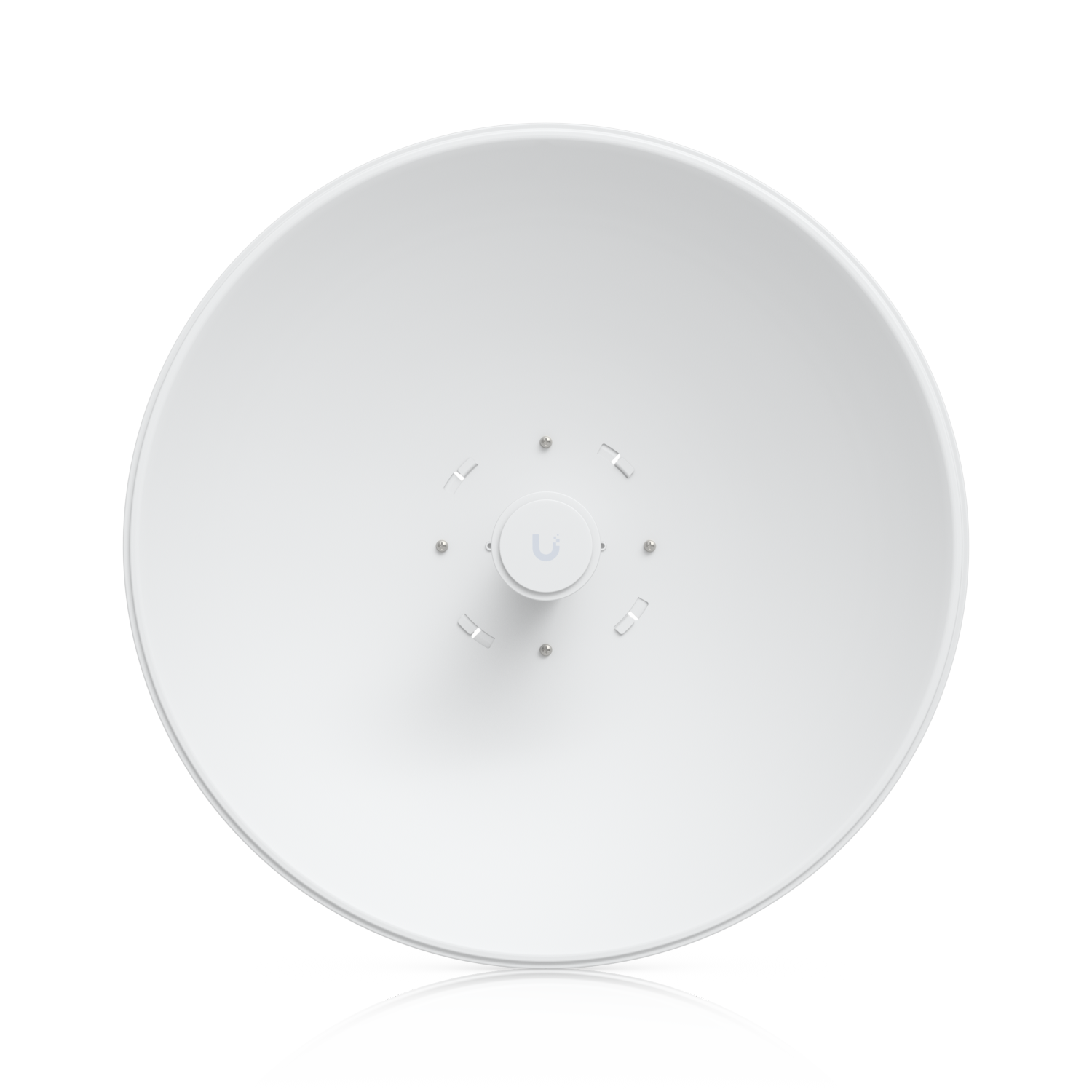

Ubiquiti airMAX AC bridge with a 500 mm reflector and 27 dBi antenna for fixed 5 GHz links.
Applications
Use for compatible network deployments after confirming power, frequency and regional requirements.
Official technical specifications
Technical specifications
Mechanical

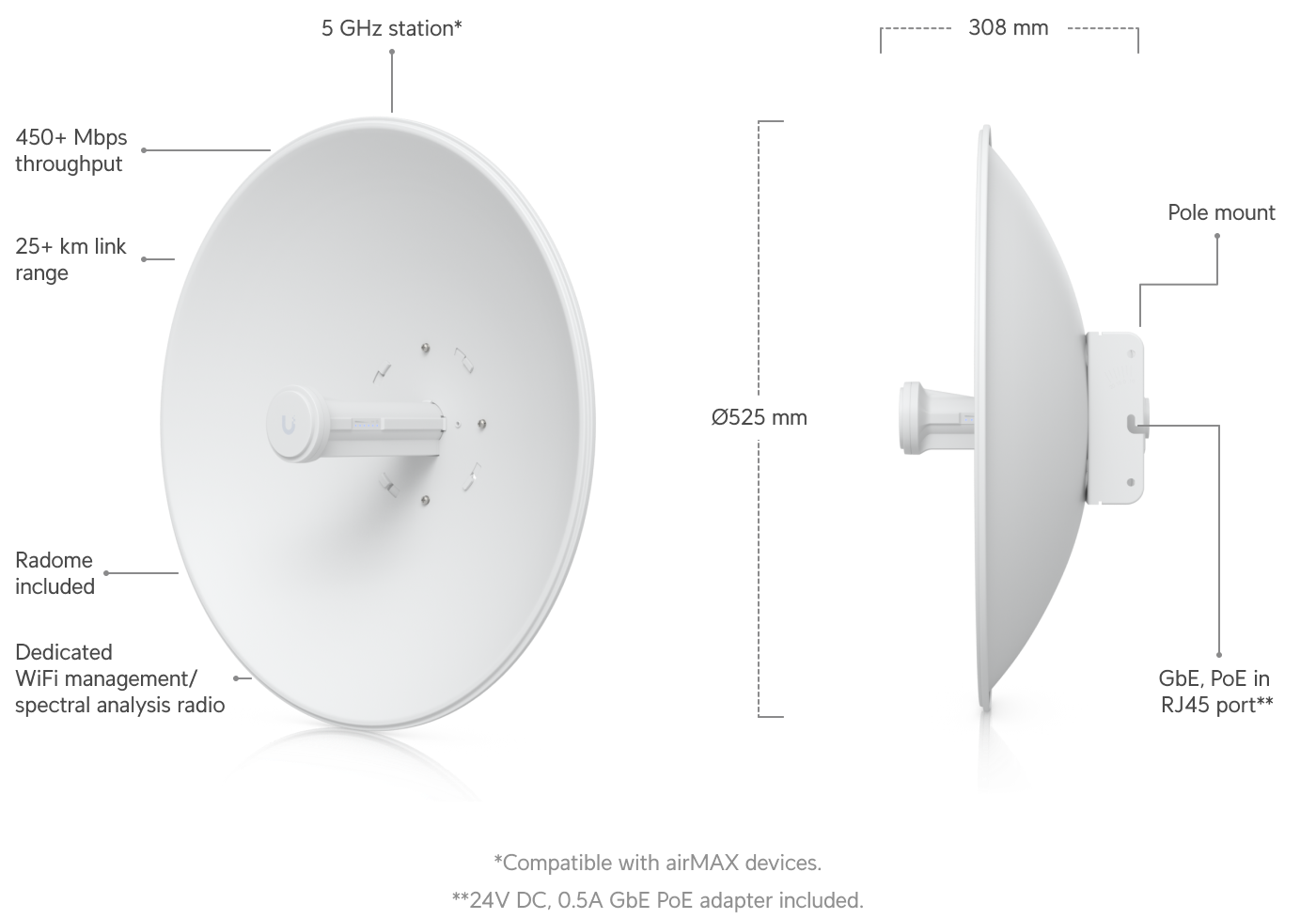

| Dimensions | 520 x 520 x 308 mm without radome |
|---|---|
| Weight | 2.35 kg without radome |
| Enclosure | UV-stabilized polycarbonate |
| Mounting | Pole mount included |
| Wind survivability | 96 km/h |
Hardware
| Networking interface | 1 x GbE RJ45 |
|---|---|
| Power method | Passive PoE, pins 4/5 (+) and 7/8 return |
| Power supply | 24V, 0.5A Gigabit PoE adapter included |
| Voltage range | 20–27V DC |
| Maximum consumption | 8.5W |
Wireless
| Antenna gain | 27 dBi |
|---|---|
| Frequency range | 5150–5875 MHz, subject to region |
| Channel bandwidth | PtP 10/20/30/40/50/60/80 MHz; PtMP 10/20/30/40 MHz |
