airMAX NanoBeam 5AC is a Ubiquiti airMAX outdoor wireless device for fixed wireless links and UISP deployments.
Key features
- Networking interface: (2) GbE RJ45 ports
- Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
- Antenna gain: 19 dBi

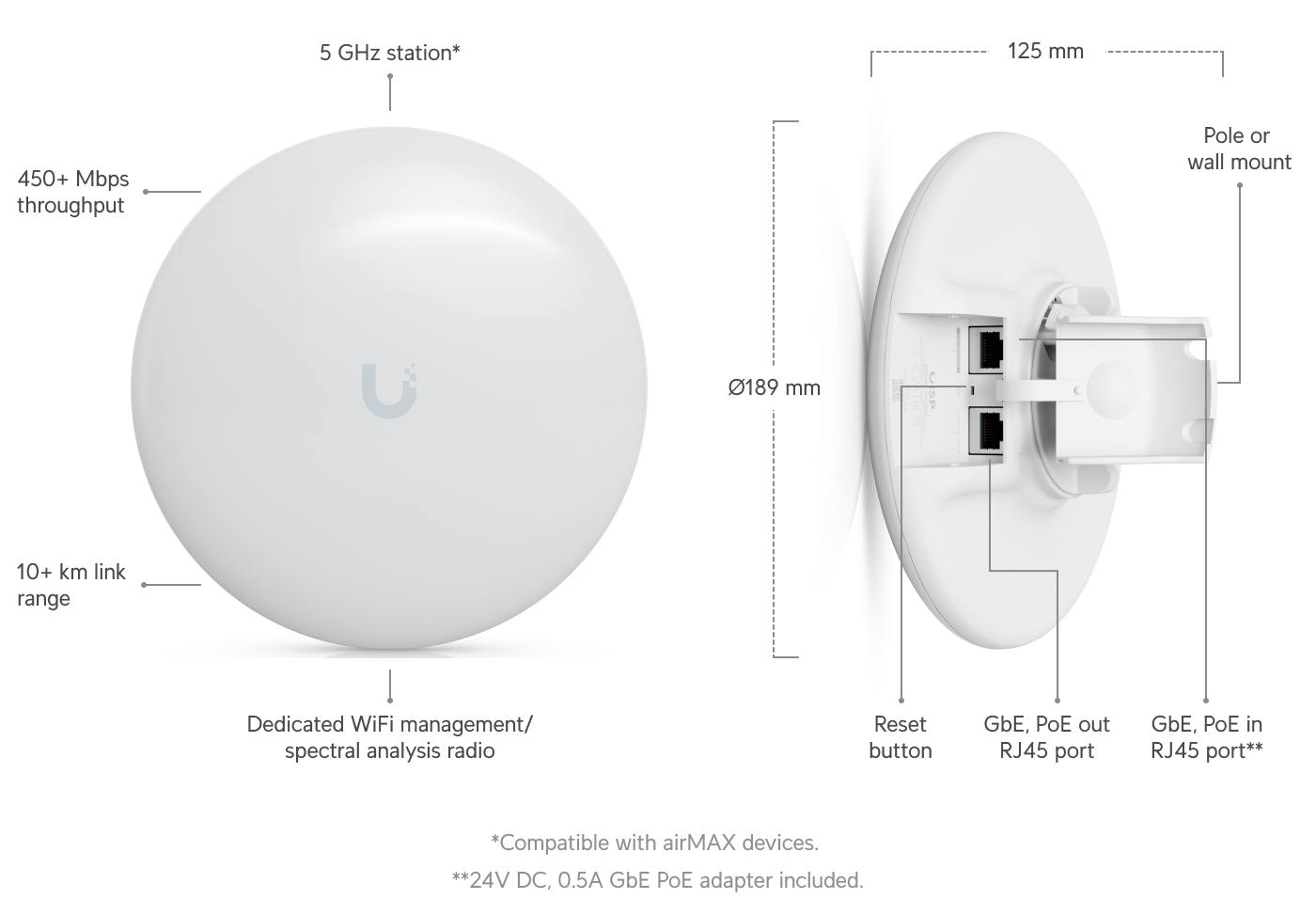

- Dimensions: 189 x 189 x 125 mm
Applications
Suitable for point-to-point or point-to-multipoint links where its frequency, antenna and regulatory characteristics match the planned deployment.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Technical specifications
Overview
| Dimensions | 189 x 189 x 125 mm |
|---|---|
| Mounting | Pole Mount (Included) |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Hardware
| Power Consumption | 8.5W |
|---|---|
| Voltage Range | 20–27V DC |
| Networking Interface | (2) GbE RJ45 ports |
| Weight | 530 g (1.17 lb) |
Additional specifications
| Antenna Gain | 19 dBi |
|---|---|
| Ambient Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
