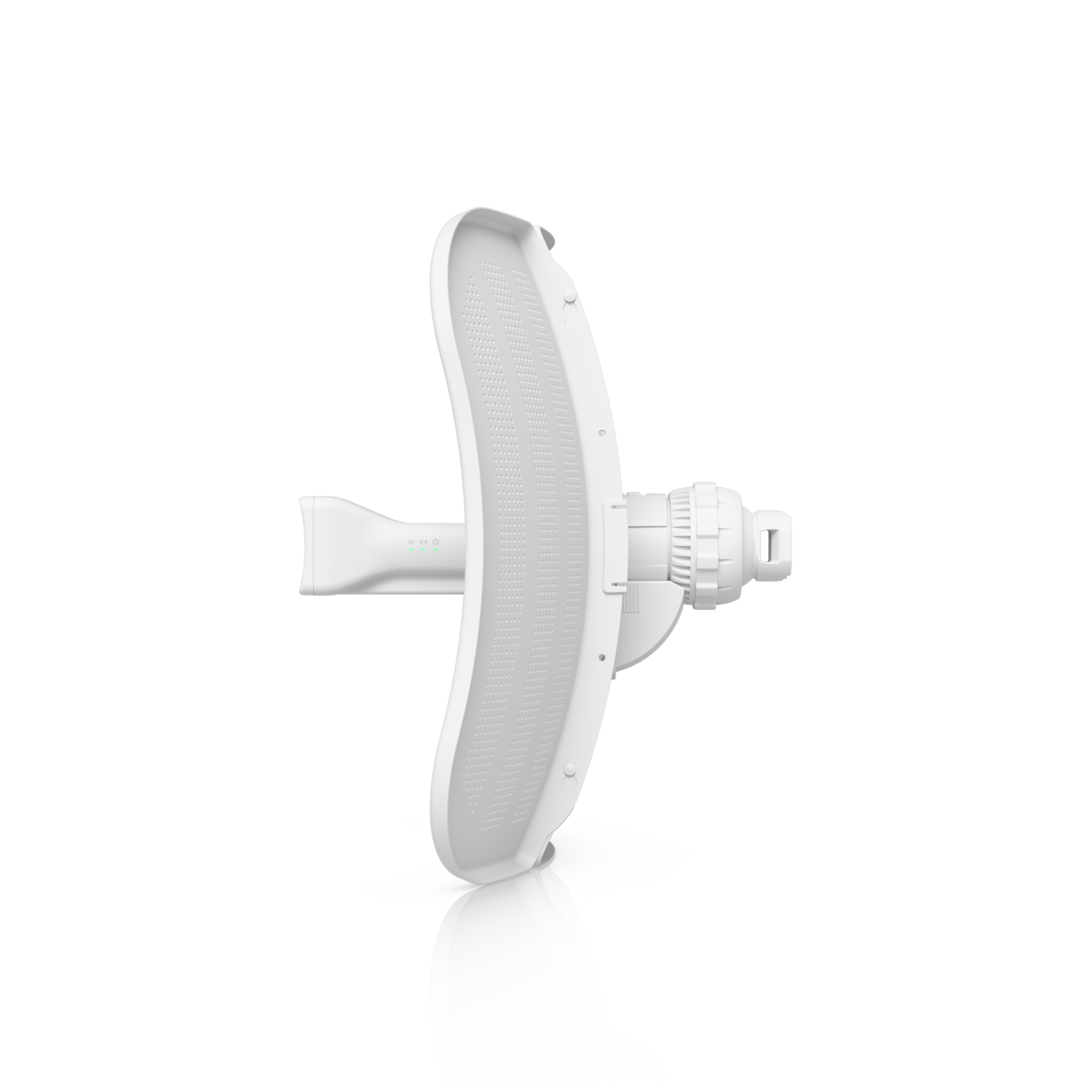

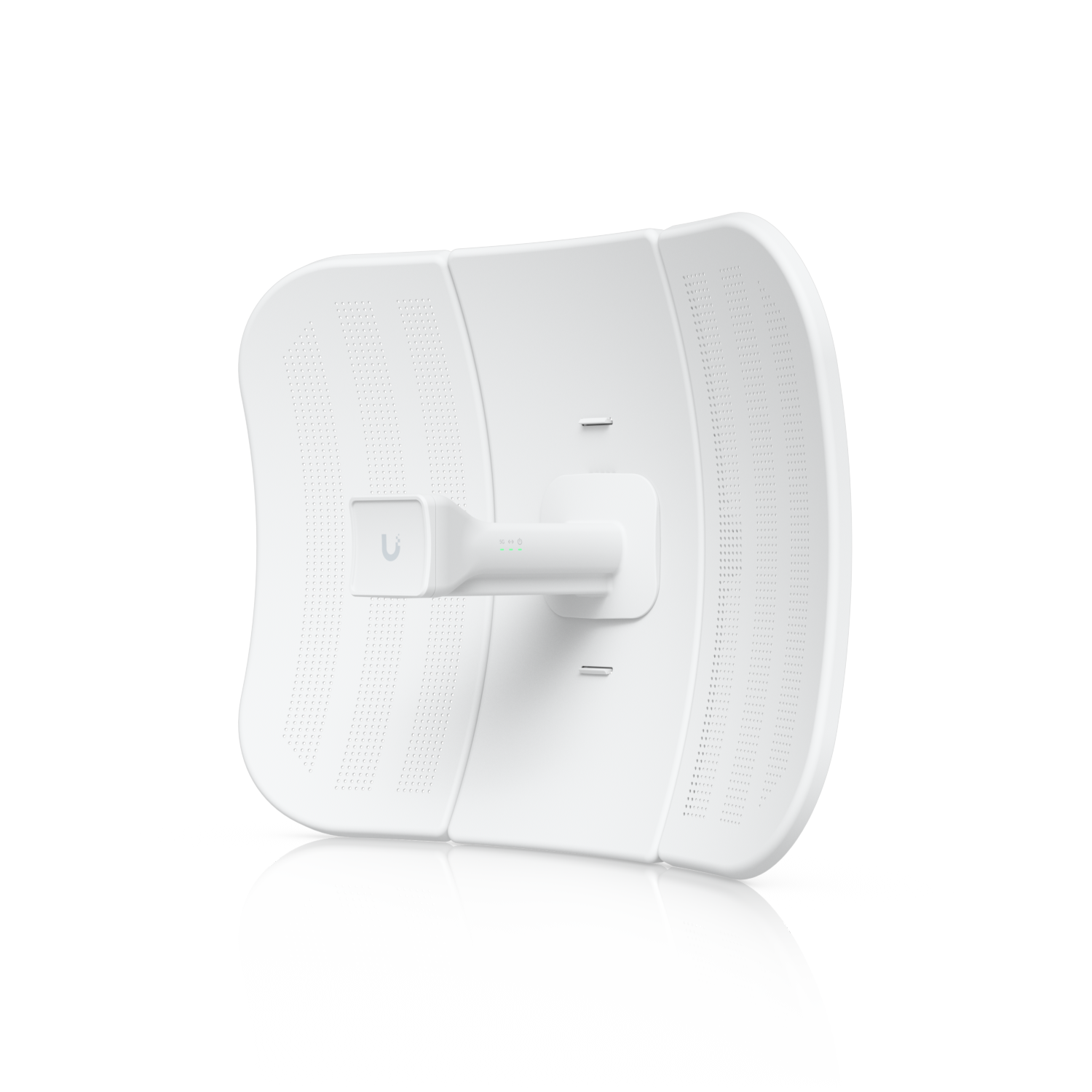

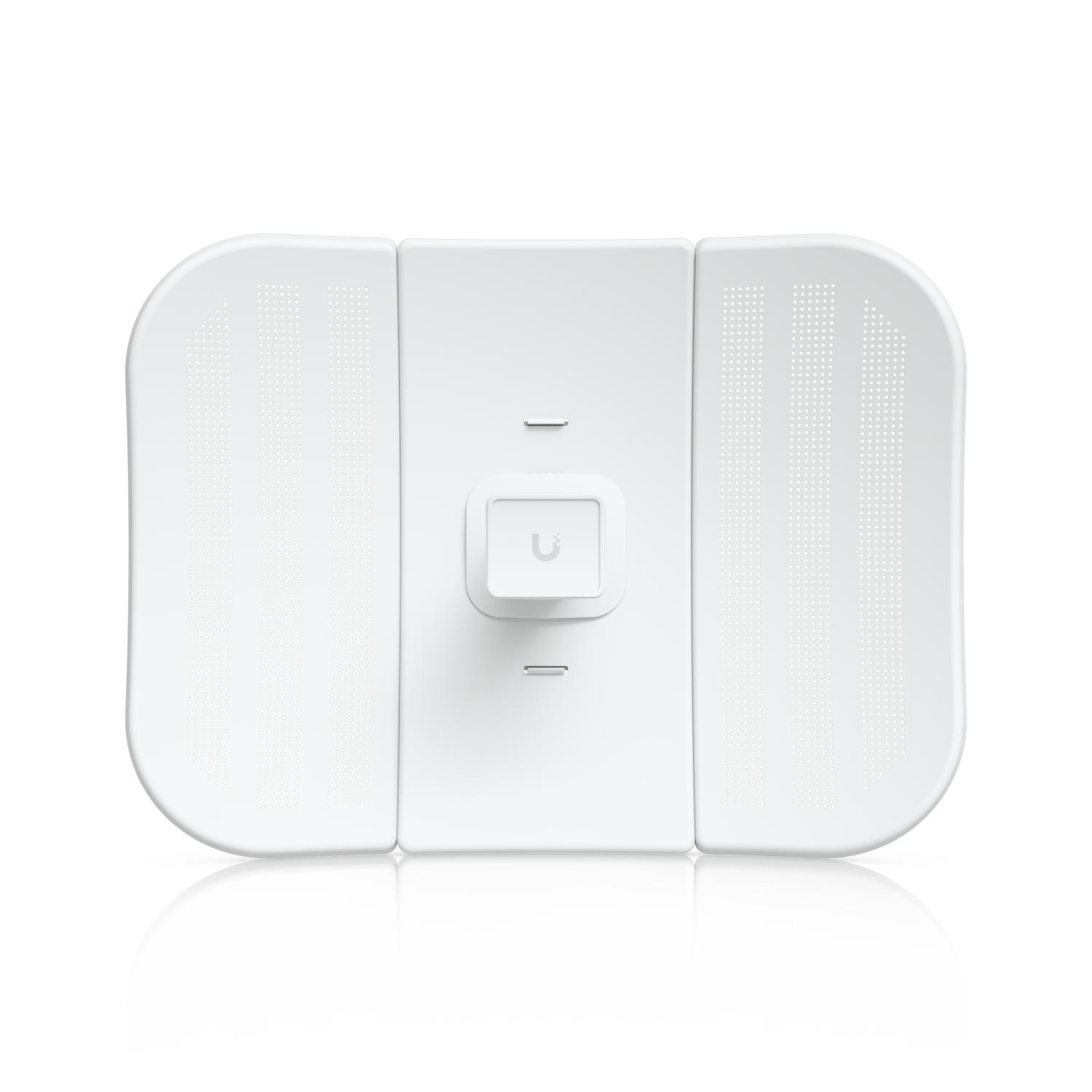

Ubiquiti airMAX 5 GHz CPE with a 23 dBi antenna for fixed outdoor wireless links.
Applications
Use for compatible network deployments after confirming power, frequency and regional requirements.
Official technical specifications
Technical specifications
Mechanical

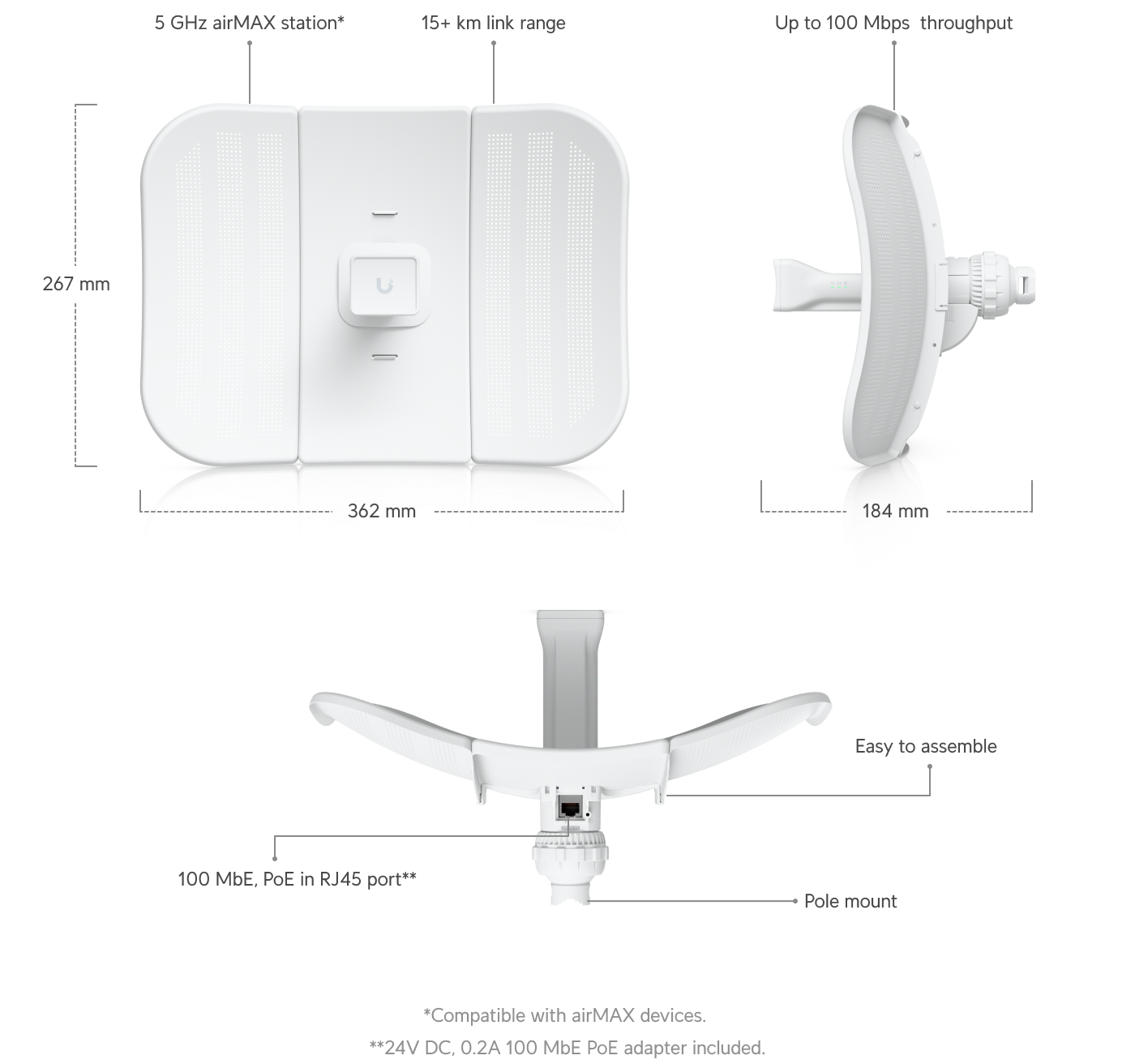

| Dimensions | 362 x 267 x 184 mm |
|---|---|
| Weight | 750 g |
| Mounting | Pole mount included |
Hardware
| Networking interface | 1 x 10/100 MbE RJ45 |
|---|---|
| Power method | Passive PoE, pins 4/5 (+) and 7/8 return |
| Power supply | 24V, 0.2A PoE adapter included |
| Voltage range | 22–27V DC |
| Maximum consumption | 7W |
Wireless
| Antenna gain | 23 dBi |
|---|---|
| Maximum TX power | 25 dBm |
Environment
| Operating temperature | -40 to 70°C |
|---|---|
| Humidity | 5–95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
