Access Point U6 In-Wall is a Ubiquiti UniFi access point for managed business Wi-Fi deployments, supporting WiFi 6.

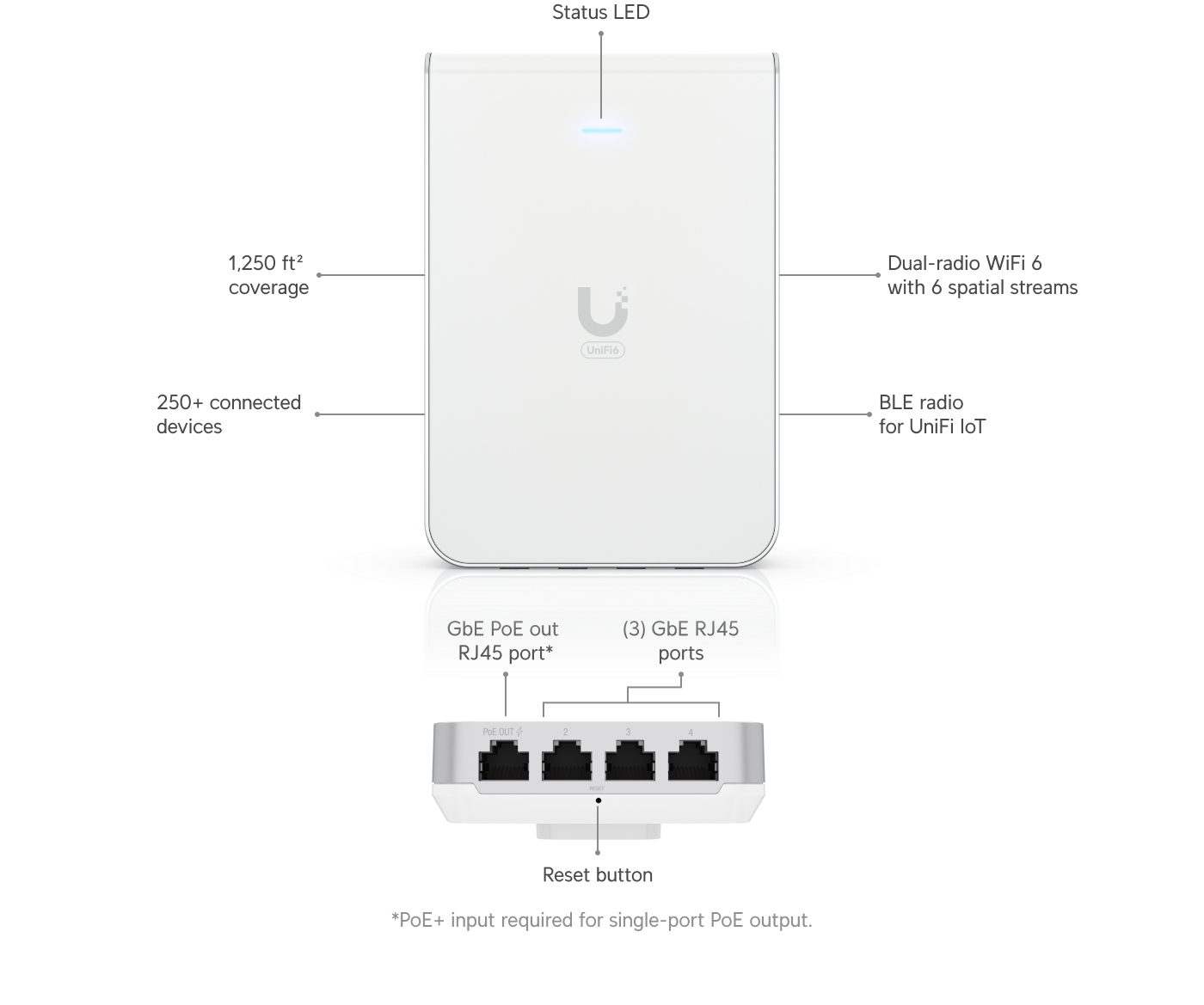

Key features
- WiFi standard: WiFi 6
- Spatial streams: 6
- Coverage: 115 m² (1,250 ft²)
- Client capacity: 250+
- Uplink: GbE
- Power: PoE
Applications
Suitable for offices, hospitality, education and other managed indoor or mixed-environment wireless networks, subject to site design.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Official product page
Technical specifications
Overview

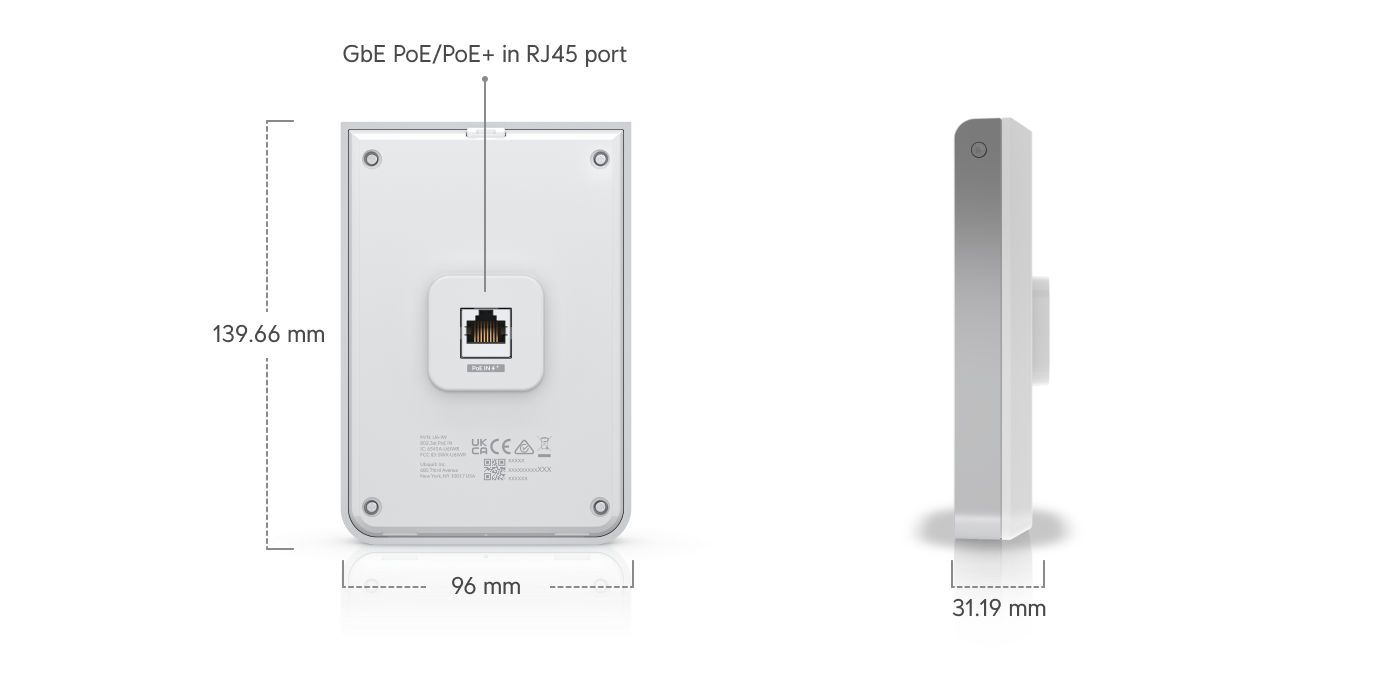

| Dimensions |
139.7 x 96 x 31.2 mm |
| WiFi Standard |
WiFi 6 |
| Spatial Streams |
6 |
| Coverage Area |
115 m² (1,250 ft²) |
| Max Clients |
250+ |
| Uplink |
GbE |
| Mounting |
Wall |
| Power Method |
PoE |
Performance
| MIMO 5ghz |
4 x 4 (DL/UL MU-MIMO) |
| MIMO 2.4ghz |
2 x 2 (DL/UL MU-MIMO) |
| Max Data Rate 5ghz |
4.8 Gbps (BW160) |
| Max Data Rate 2.4ghz |
573.5 Mbps (BW40) |
| Antenna Gain 5ghz |
5.9 dBi |
| Antenna Gain 2.4ghz |
5 dBi |
| Max TX Power 5ghz |
26 dBm |
| Max TX Power 2.4ghz |
22 dBm |
Hardware
| Power Consumption |
13W (Excluding PoE output) |
| Networking Interface |
(1) Data-in: GbE RJ45 port |
| Weight |
460 g (1 lb) |
| Enclosure Material |
Plastic, aluminum |
Software
| App Requirement |
UniFi Network Version 6.0.45 and later |
Additional specifications
| Antenna Gain |
5 GHz |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, SRRC, Anatel: 11546-22-08356 |
