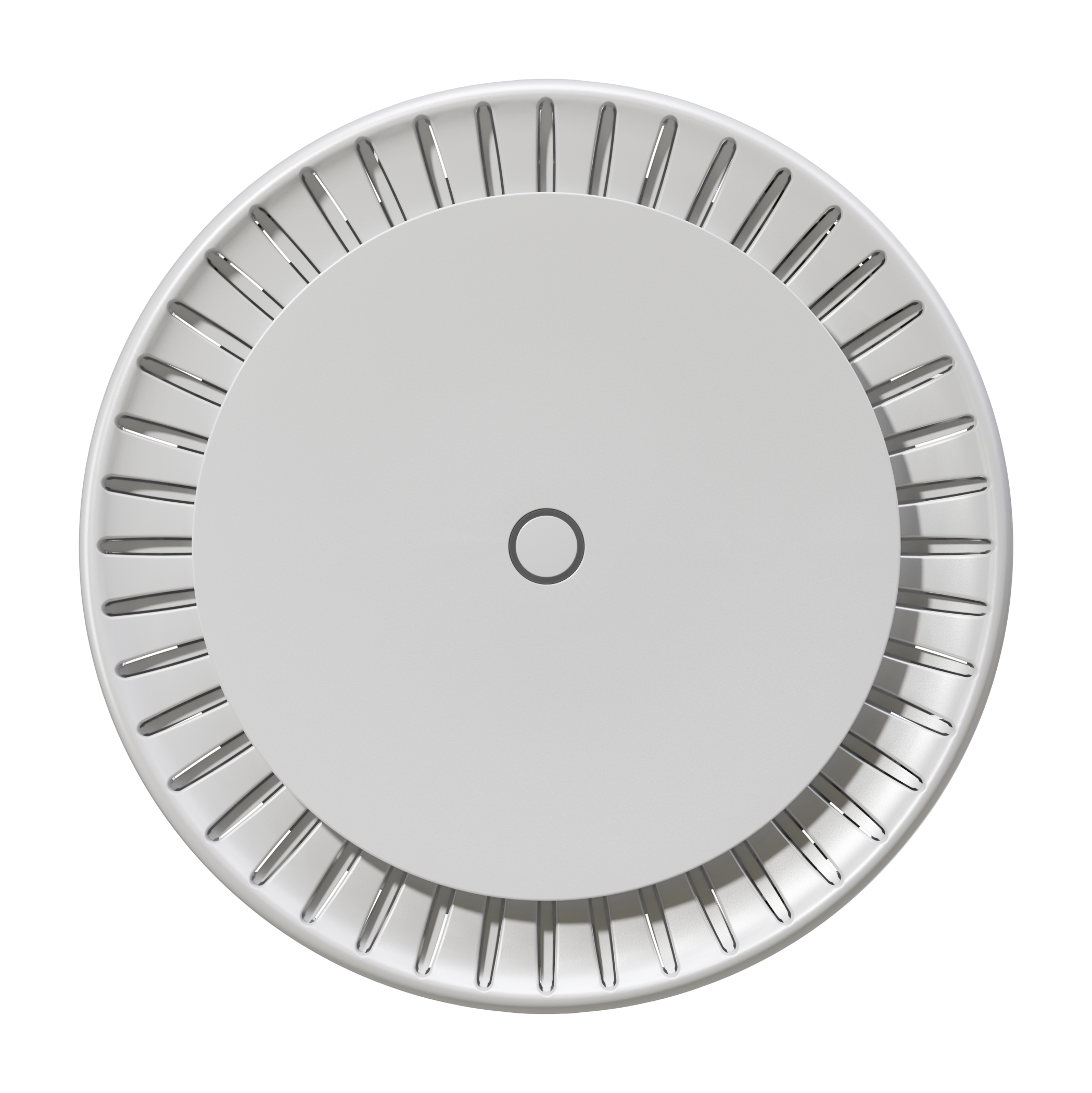

MikroTik cAP ax

Ceiling-mount dual-band Wi-Fi 6 access point with two Gigabit Ethernet ports, PoE input/output and centralized CAPsMAN support.

Key features

• ARM 64-bit, quad-core IPQ-6010 CPU at 864–1800 MHz
• 1 GB RAM and 128 MB NAND
• RouterOS v7, license level 4
• 2.4 GHz: 574 Mbit/s; 5 GHz: 1200 Mbit/s
• Two Gigabit Ethernet ports
• 802.3af/at PoE input: 18–57 V; passive PoE output on Ether2
• Maximum power consumption: 36 W; 11 W without attachments
• WPA3 and 802.11r support
• Tested ambient temperature: -40°C to 70°C

Best suited for

Offices, hospitality venues, retail areas and education spaces needing discreet ceiling coverage and centralized MikroTik management.
