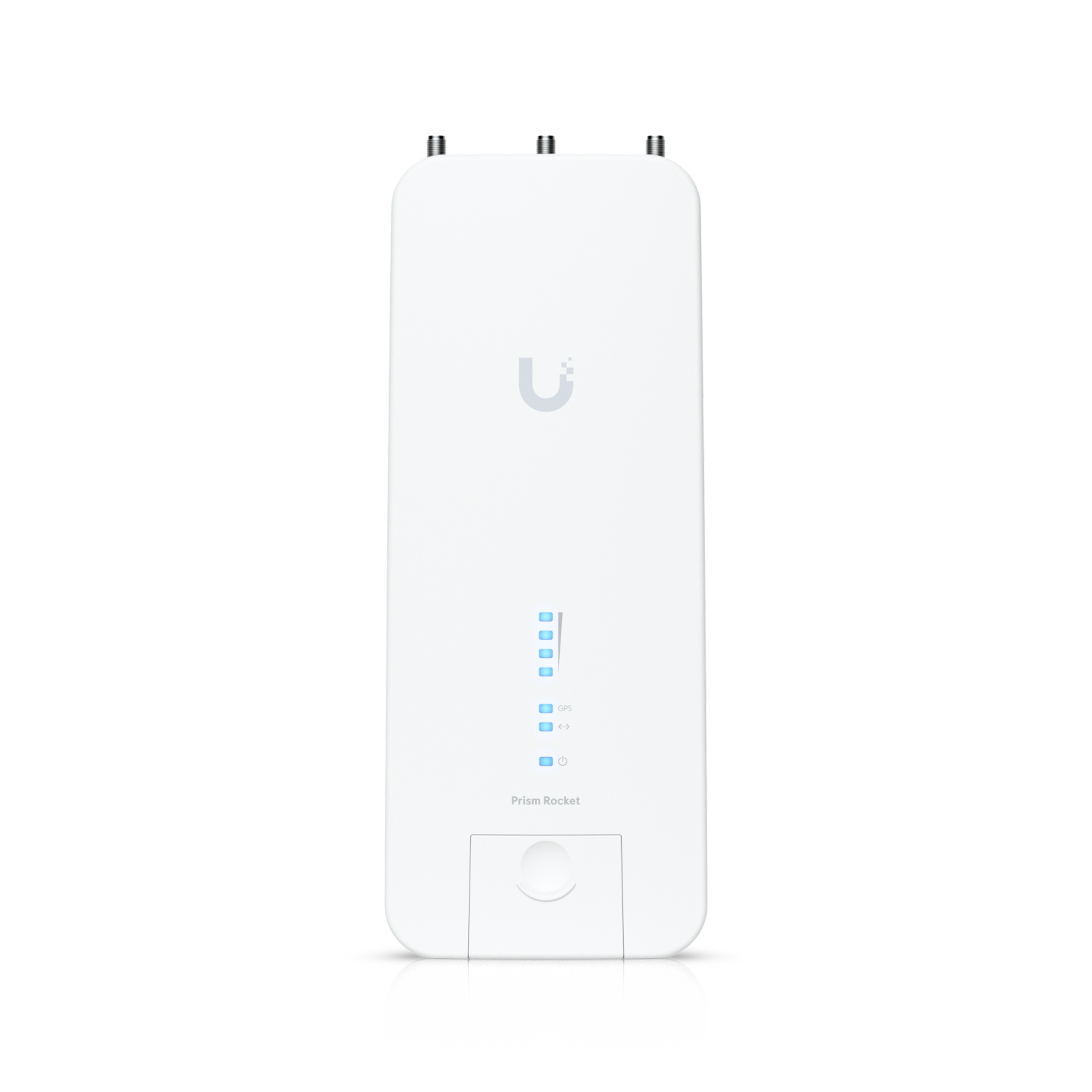

airMAX Rocket Prism 5AC Radio is a Ubiquiti airMAX outdoor wireless device for fixed wireless links and UISP deployments.

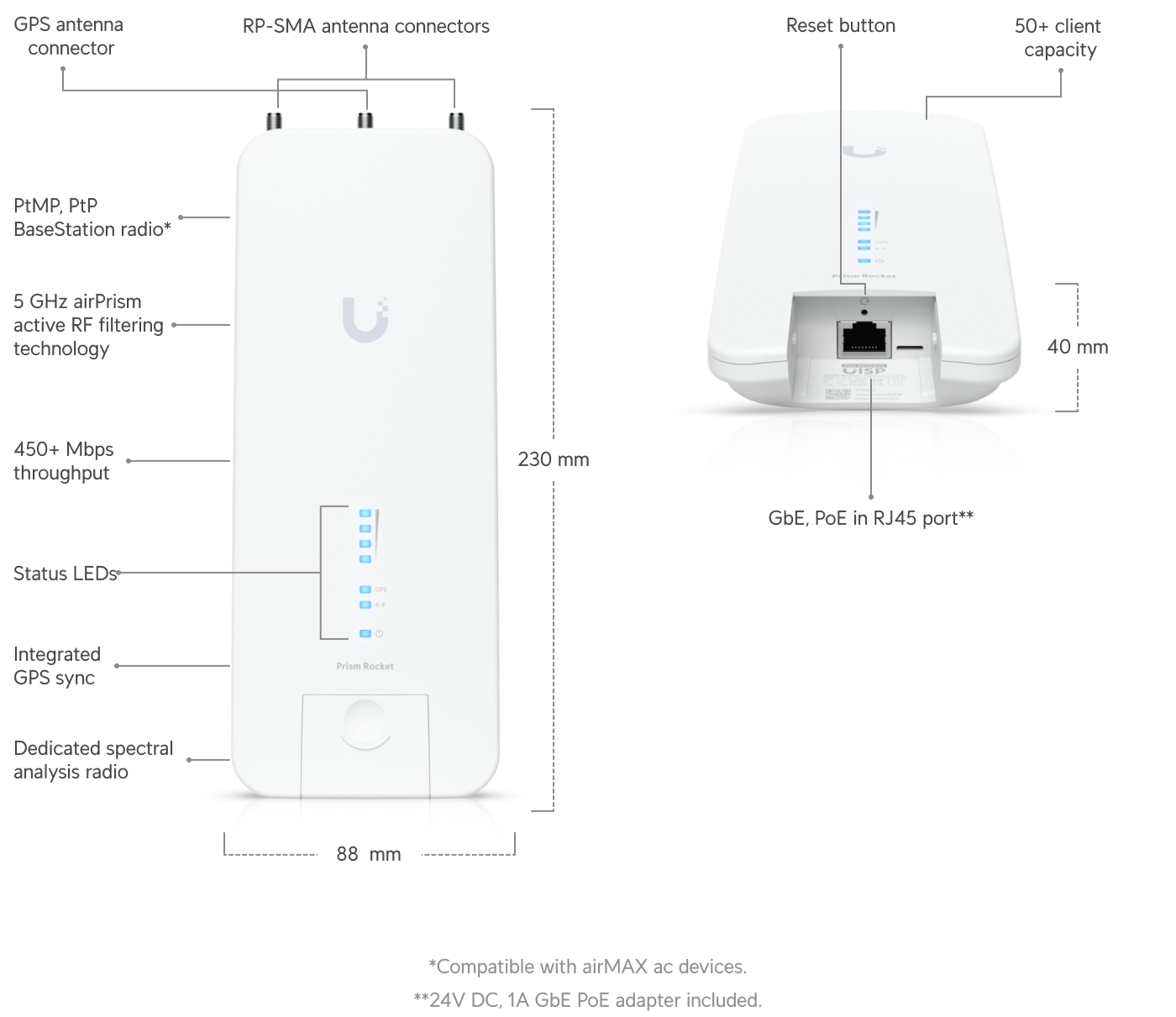

Key features
- Networking interface: (1) GbE RJ45 port
- Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
- Dimensions: 88 x 40 x 230 mm
Applications
Suitable for point-to-point or point-to-multipoint links where its frequency, antenna and regulatory characteristics match the planned deployment.
Need compatibility guidance? Request a quote or talk to Beyond Networking Solution before deployment.
Product information
Technical specifications
Overview
| Dimensions | 88 x 40 x 230 mm |
|---|---|
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
Hardware
| Power Consumption | 9.5W |
|---|---|
| Voltage Range | 18–27V DC |
| Networking Interface | (1) GbE RJ45 port |
| Weight | 400 g (14.1 oz) |
Additional specifications
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
|---|---|
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, RoHS, Anatel: 02137-18-08356 |
